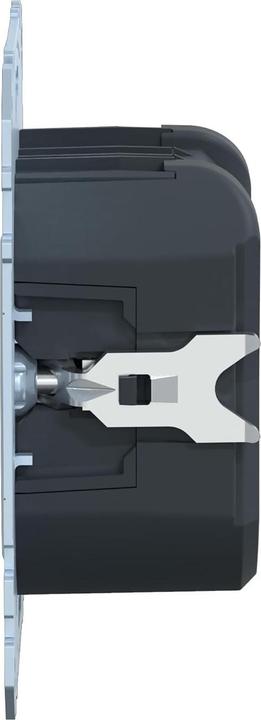

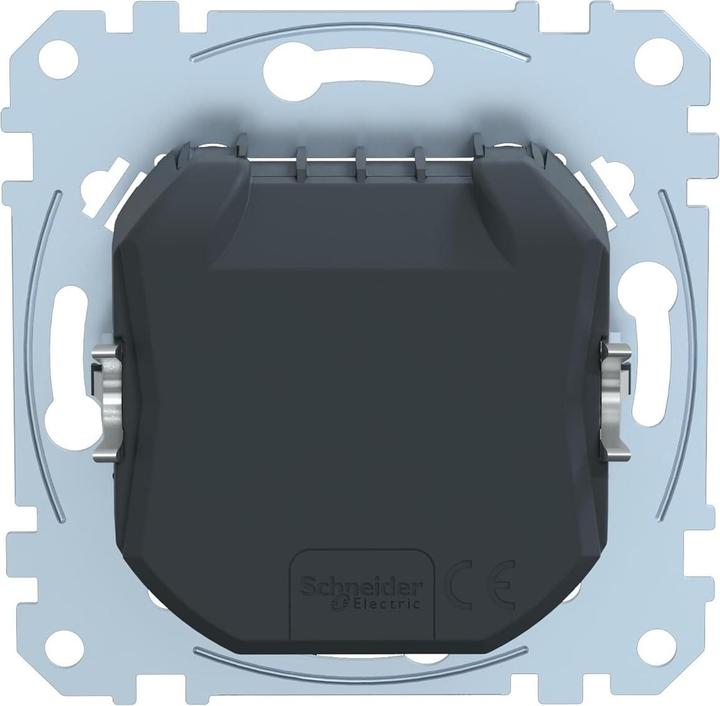

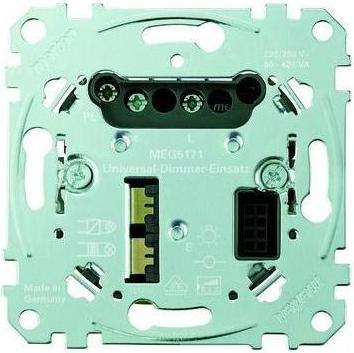

Merten Universal dimmer insert

Universal dimmer module for resistive, inductive, or capacitive loads, e.g., incandescent lamps, dimmable toroidal transformers, or electronic transformers. (Phase cut or phase angle) The universal dimmer automatically detects the connected load. Do not connect mixed loads. With claw and screw mounting, equipped with screw terminals.

Functions:

• Switching and dimming from one output
• The module determines how the function of the insert is used
• External control via a PlusLink input
• Overload and short-circuit protection
• Soft start
• Memory function

Rated voltage: AC 220/230 V, 50/60 Hz
Neutral conductor: not required (2-wire system)
Connection cross-section: max. 2x2.5 mm²

Composition:

• Base element
• Operating type: other
• Number of units: 1
• App control via Bluetooth: no
• Phase cut dimming: yes
• Phase angle dimming: yes
• Series dimmer: no
• Load type: universal
• Auxiliary input: yes.
