Merten Push-button insert
Colour2
In Detail

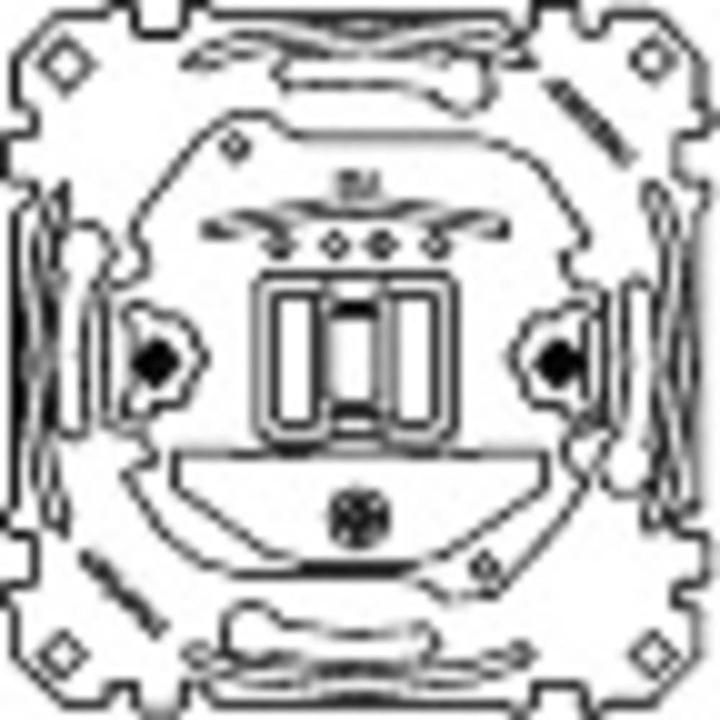

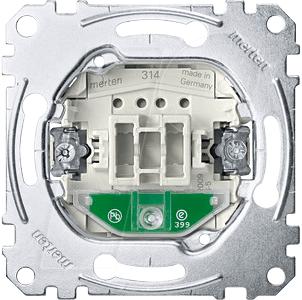

Merten Push Button Insert 1S MEG3160-0000
Manufacturer: Merten
Description: Push Button Insert 1S with Orientation Light
Type: MEG3160-0000
Assembly: Flush Mount Insert
Design: Single Push Button
Operation Type: Rocker
Number of Actuation Rockers: 1
Pole Count: 1
Rated Voltage: 250 V
Rated Current: 10 A
With Lighting: Yes
With Signal Lamp: No
Feedback Contact: No
Mounting Type: Surface Mount
Mounting Method: Claw/Screw Mounting
Material: Metal/Plastic
Material Quality: Other
Halogen-Free: Yes
Antibacterial Treatment: No
Surface Protection: Untreated
Surface Finish: Matte
Transparent: No
Text Field/Label Area: No
Printing: None
Suitable for Protection Class (IP): IP20
Device Width: 73 mm
Device Height: 73 mm
Device Depth: 37 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT Support Available: No
Merten Push Button Insert 1S MEG3160-0000: Additional Details
Features: Front-side retrofitting of QuickFlex lighting modules without disassembling the switch. Front-side measurement and testing contacts, accessible without switch disassembly. Quick-thread screws for claw mounting. Recessed claws with return spring. High-gloss galvanized support ring insulated to the claw. With claw and screw mounting. With plug terminals. To be completed with rockers for Switch/Button System M.
EAN: 4042811144715.
