Merten Central plate

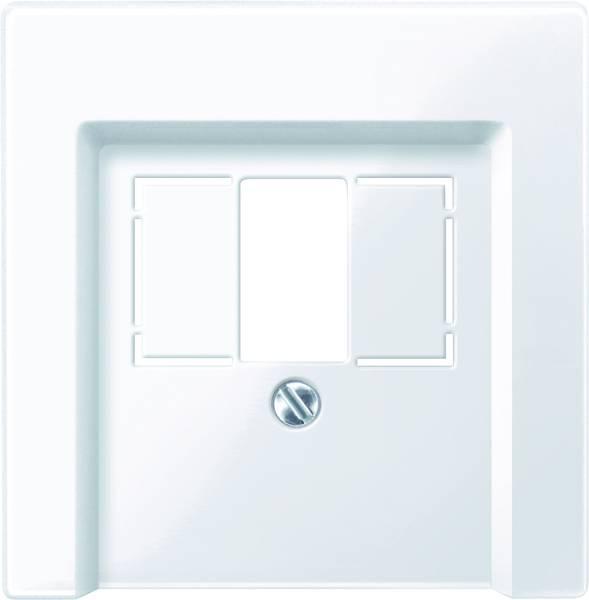

Merten central plate aws/gl 296025

Manufacturer: Merten
Designation: Central plate aws/gl for junction box
Type: 296025
Assembly: Central plate
Usage: Central plates for TAE
Support ring: No
With dust protection: No
With hinged cover: No
Outlet direction: Straight
Labeling field: Without labeling field
With imprint: No
Mounting type: Flush-mounted
Material: Polycarbonate
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Antibacterial
Surface finish: Glossy
Color: Active white
RAL number (similar): 9016
Transparent: No
Mounting type: Mounting with screw
With sockets/couplings: No
Suitable for number of sockets/couplings: 1
With strain relief: No
Sockets shielded: No
Housing shielded: No
Luster terminal: No
Suitable for protection class (IP): IP20
Device width: 57 mm
Device height: 56 mm
Device depth: 17 mm

In the System M design. For telecommunications connection boxes TAE, TDO, combination boxes UAE/TAE, loudspeaker connection inserts, USB charger, USB, HDMI, VGA or keystones. To be completed with telecommunication connection socket TAE 3gang, combination socket UAE/TAE (Cat 3), loudspeaker connection insert, 1gang, loudspeaker connection insert, 2gang, USB power supply, USB interface, USB connection socket insert, 1-fold, HDMI connection socket insert, 1-fold, VGA connection socket insert, 1-fold, UP mounting adapter for Keystone modules, 2-fold, telecommunication connection socket TDO 3x10. Material thermoplastic brilliant, antibacterial. Smooth and self-disinfecting surface with antibacterial effect. Color similar to RAL 9016, active white glossy. EAN: 4042811042974.
