Merten Central plate

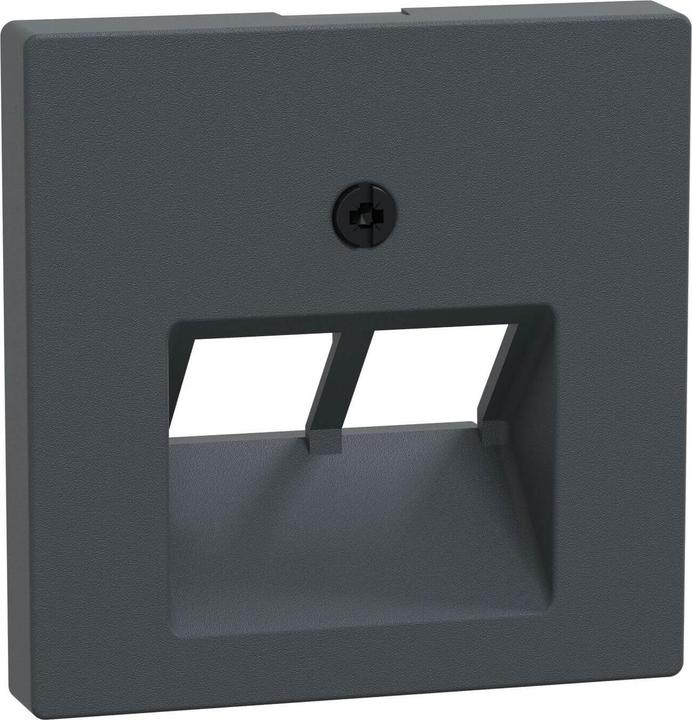

Merten Central Plate Anthracite 298014

Manufacturer: Merten
Description: Central plate anthracite for UAE applications
Type: 298014
Composition: Central plate
Usage: UAE/IAE
Mounting ring: no
With dust protection: no
With flap cover: no
Outlet direction: straight
Labeling field: without labeling field
With print: no
Mounting type: flush-mounted
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: matte
Color: anthracite
RAL number (similar): 7024
Transparent: no
Mounting type: screw mounting
With sockets/couplings: no
Suitable for number of sockets/couplings: 2
With strain relief: no
Shielded sockets: no
Shielded housing: no
Terminal block: no
Suitable for protection class (IP): IP20
Device width: 56 mm
Device height: 56 mm
Device depth: 17 mm

Merten Central Plate Anthracite 298014: further details in Design System M. For UAE applications 8/8, 2x8, 2x8 Cat 5e, 2x8 Cat 6. Compatible with UAE applications from Rutenbeck or E-DATdesign by BTR. To be completed with UAE application 8/8 465701, UAE application 2x8 465702, UAE application 8/8 Cat 6 465706. Material thermoplastic satin finish. Color anthracite. EAN: 4011281894574.
