MDT Button

MDT Technologies Push Button Plus TS 55 6-fold

Manufacturer: MDT Technologies

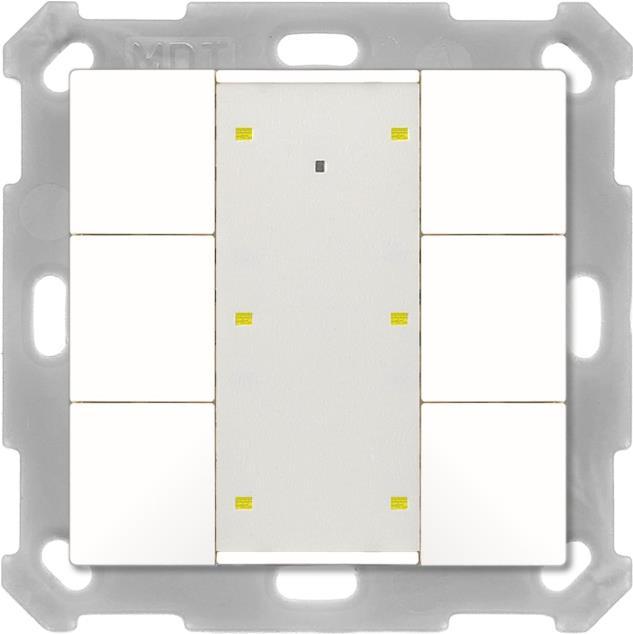

Description: Push Button Plus TS 55 6-fold pure white glossy
Type: BE-TA55T6.G2
Bus System KNX: Yes
Bus System KNX Wireless: No
Bus System Wireless Bus: No
Bus System LON: No
Bus System Powernet: No
Other Bus Systems: Without wireless bidirectional: No
Mounting Type: Flush-mounted
With Theft/Dismantling Protection: No
With Bus Coupling: Yes
Number of Activation Points: 6
Number of Buttons: 6
With LED Display: Yes
With Labeling Field: Yes
With Display: No
Material: Plastic
Material Quality: Thermoplastic
Surface Finish: Glossy
Color: White
RAL Number (similar): 9010
Transparent: No
With Room Thermostat: No
With Infrared Sensor: No
Protection Class (IP): IP20
Min. Depth of Device Box: 35 mm

Further Details: Push Button Plus TS 55 6-fold, pure white glossy. Version with 6 buttons and temperature sensor. LED for operation/status and orientation light. Suitable for 55 mm switch programs, e.g., GIRA Standard 55, E2, E22, Event or BERKER S1, B3, B7 or JUNG A 500, A PLUS, A Creation, AS 500, A550, A FLOW or MERTEN 1M, M-Smart, M-Plan, M-Pure. Temperature sensor for measuring room temperature. Central labeling field with cover film for individual labeling. The buttons can be configured as a pair or as individual buttons. Single and double button operation for switching, dimming, blinds, values. Innovative group control with long/extra-long button press. Switching values/scenes with up to 4 values. Short/long button press with 2 objects. 4 logic blocks. 6 operation/status LEDs (red/green) and orientation light can be controlled independently. Switching object to control LED priority. Installation in the switch box with included support ring. Integrated bus coupling unit.
