MDT Button

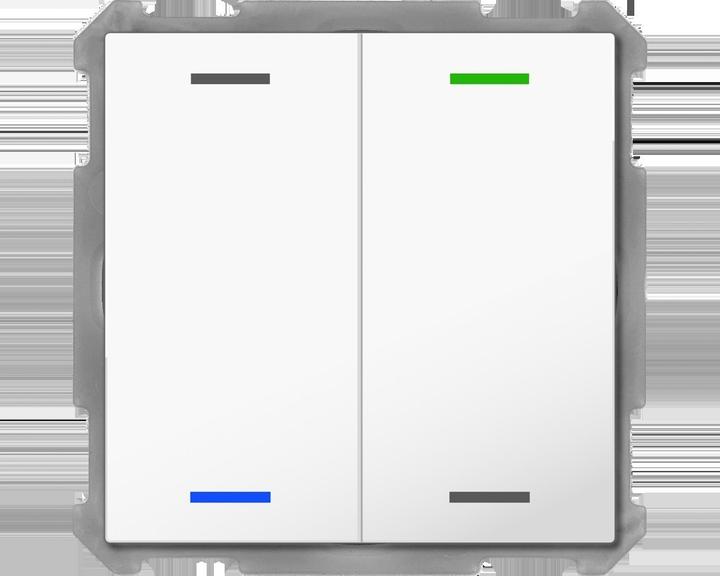

MDT Technologies Push Button Light 63 Double

Manufacturer: MDT Technologies
Description: Push Button Light 63 Double RGBW, Studio White, Glossy
Type: BE-TAL6302.01
Bus System KNX: Yes
Bus System KNX Wireless: No
Bus System Wireless Bus: No
Bus System LON: No
Bus System Powernet: No
Other Bus Systems: None
Bidirectional Wireless: No
Mounting Type: Flush-mounted
With Theft/Dismantling Protection: No
With Bus Coupler: Yes
Number of Activation Points: 4
Number of Buttons: 2
With LED Display: Yes
With Labeling Field: No
With Display: No
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: Other
Surface: Glossy
Color: White
RAL Number (similar): 9016
Transparent: No
With Room Thermostat: No
With Infrared Sensor: No
Protection Class (IP): IP20
Min. Depth of Device Box: 35 mm

Further Details:
Push Button Light 63 Double, RGBW, glossy Studio White, neutral. Neutral version with 2 pairs of buttons / 4 button surfaces. Integrated bus coupling unit. Suitable for 63 mm switch programs, e.g., Busch-Jaeger future linear, solo, carat, and Busch-axcent. New multi-touch function, sends up to 4 values/DPTs to the same or different objects. Innovative group control with long/extra-long button press. The buttons can be freely configured as pairs or single buttons. Single and double button operation for switching, dimming, blinds, values. Switching values/scenes with up to 4 values. Short/long press operation with 2 objects. Two RGBW status LEDs per button pair. LED brightness controllable via day/night or brightness object. 4 logic blocks. Integrated bus coupler.
