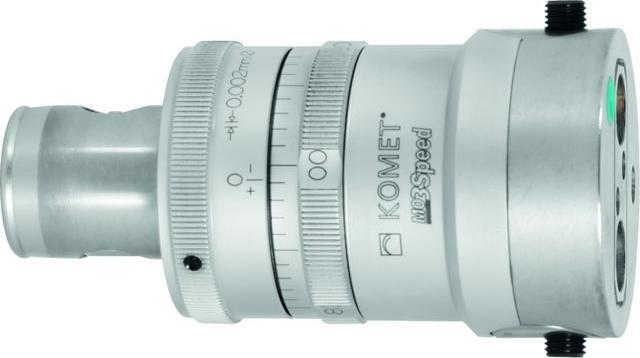

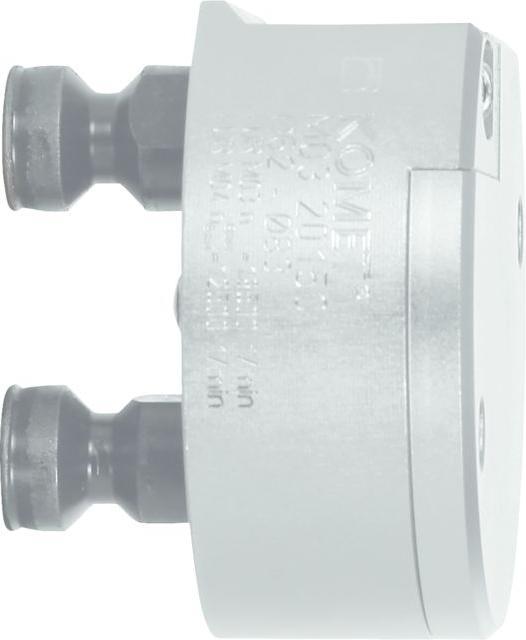

M03Speed fine adjustment head
Product details
Design: Dynamic balancing in the slide for high rotational speeds. Modular system structure. Fine adjustment without additional clamping. With ABS connection for maximum exchange accuracy. Quick coarse adjustment by adjusting the turning tool. Targeted internal coolant supply to the cutting edge. Minimal feed steps in the micrometer range, within the fine adjustment range of 0.25 - 0.6 mm in diameter, depending on the turning range. The fine adjustment steps are 0.002 mm in diameter per subdivision. High resolution allows for easy adjustment and readability without a vernier scale. Note: Additional cutting holders, e.g., for reverse machining and with other angles = 15°, 30°, 45°, etc., are available for short-term delivery. Please order the change bridge, cutting carrier, and indexable inserts separately. Usage: In combination with change bridge No. 238372.
