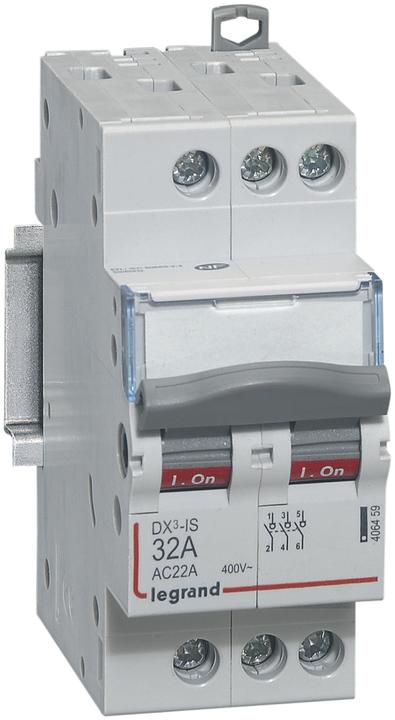

Legrand Series installation switch

Legrand DIN rail mounted switch 406459

Manufacturer: Legrand
Designation: DIN rail mounted switch
Off: 3P 32A
Type: 406459
Version as main switch: Yes
Version as maintenance/repair switch: No
Version as safety switch: Yes
Version as emergency stop device: No
Version as reversing switch: No
Max. rated operating voltage Ue at AC: 400 V
Rated operating voltage: 0...690 V
Rated continuous current Iu: 32 A
Rated continuous current at AC-21, 400 V: 32 A
Rated operating power at AC-3, 400 V: 0 kW
Rated short-time withstand current Icw: 0.75 kA
Rated operating power at AC-23, 400 V: 0 kW
Conditional rated short-circuit current Iq: 4500 kA
Number of poles: 3
Motor drive optional: No
Motor drive integrated: No
Device type: Built-in device
Fixed installation technology
Suitable for floor mounting: No
Suitable for front mounting 4-hole: No
Suitable for central front mounting: No
Suitable for manifold installation: Yes
Suitable for intermediate installation: No
Colour of the operating element: Grey
Design of the operating element: Knob
Lockable: Yes
Connection type main circuit: Screw connection
Protection class (IP), front: IP20

Further details: Switch-disconnector DX3, 3-pole, 32A 400 VAC, to EN 60947-3, EN 60669-2-4. Utilisation category AC-22A. Mounting on top-hat rail EN 60715 with snap-in quick fasteners, clear information on the front of each device, clear red/green switch position indicator on the switch lever (lockable), with labelling window, single-pole can be connected with pin comb rails, attachment of auxiliary devices possible.
EAN: 3245064064590.
