Legrand Circuit breaker 1 pole

Minimum order 4
Ratings
Delivered Wed, 29.4.
More than 10 pieces in stock at third-party supplier
Supplied by
Conrad CH
Free shipping starting at 50.–

Rated current5

Product details

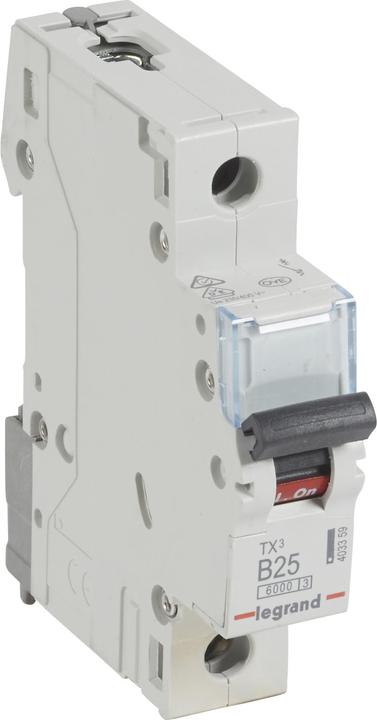

The TX3 circuit breaker with B-characteristic from Legrand is a reliable and safe device designed to protect electrical wiring in lighting and socket circuits. With a rated voltage of 230/400 V and a rated current of 25 A, this single-pole circuit breaker offers high performance and safety. The device complies with the standards IEC/EN 60898-1, VDE 0641-11, and IEC/EN 60947-2, highlighting its reliability and quality. The circuit breaker is equipped with a rated short-circuit capacity of 6 kA, meaning it can safely handle high fault currents. Installation is straightforward on a DIN rail, and the clear switching position indicator along with the labeling window ensures user-friendly operation. The TX3 circuit breaker is therefore an excellent choice for anyone who values safety and efficiency in their electrical installations.

  • Energy limitation class 3 for additional protection

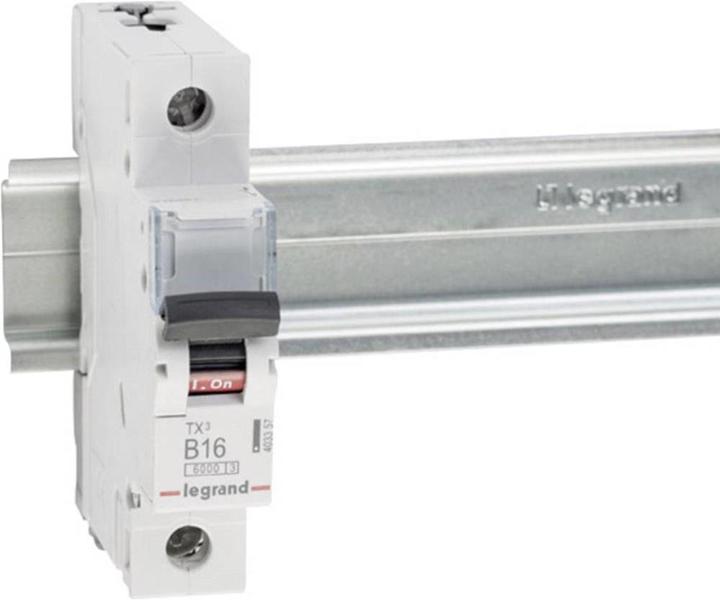

  • Snap-on quick mounting for easy installation on DIN rail
  • Clear switching position indicator in red/green on the switch lever
  • Plug-in protection for safe insertion of the conductor
  • Mounting of auxiliary devices is possible.

Key specifications

Circuit breaker type
Miniature circuit breaker
Mounting type
Top-hat rail
number of poles
1
Length
100 mm
Width
90 mm

General information

Item number
8465875
Manufacturer
Legrand
Category
Residual-current device
Manufacturer no.
403359
Release date
21.4.2018
Minimum order
4

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
Mounting type
Top-hat rail
number of poles
1
Tripping characteristic
B/6 ka
Rated current
25 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IP20

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
18.08 kg
Climate contribution
CHF 0.34

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
100 mm
Width
90 mm
Height
190 mm

30-day right of return
24 Months Warranty (Bring-in)
