Product details

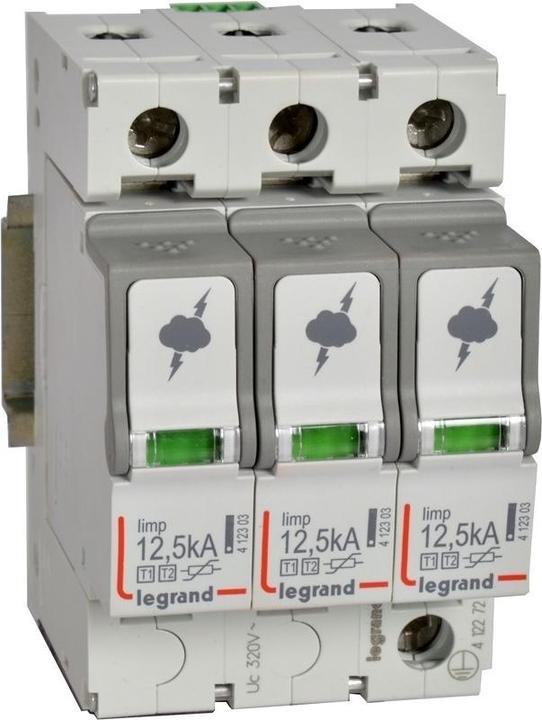

The Legrand Type 1+2 combined surge protector is a highly advanced device specifically designed for surge protection in electrical systems. With a rated voltage of 230/400 VAC and a lightning impulse current capacity of 12.5 kA, this combined surge protector offers reliable protection against surges caused by direct or indirect lightning strikes as well as switching actions. It is suitable for TN-C systems and meets the requirements of the IEC/EN 61643-11 standard. The surge protector is equipped with a plug-in protection module, allowing for easy maintenance. A status indicator informs about the operational state of the device, with green indicating readiness for operation and orange signaling the need to replace the protection module. Installation is done on a DIN rail, facilitating the setup in various electrical installations.
- Protection against surges from lightning strikes and switching actions
- Easy maintenance through plug-in protection module
- Status indicator for operational state and maintenance needs
- Suitable for TN-C systems
- Complies with the IEC/EN 61643-11 standard.
Surge protection type | Combination arrester |
Number of conductors | 3 x |
mounting style | Top-hat rail |
Test class | Type 2 |
Documents | |
Item number | 32644557 |
Manufacturer | Legrand |
Category | Surge protection |
Manufacturer no. | 412272 |
Release date | 26.1.2023 |
Surge protection type | Combination arrester |
Number of conductors | 3 x |
Lightning impulse current | 12.50 kA |
Rated leakage surge current | 25 kA |
Nominal voltage | 400 V |
Protection level | 1.90 V |
mounting style | Top-hat rail |
Test class | Type 2 |
Protection type (IP code) | IP20 |
Country of origin | Poland |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Length | 0.10 m |
Width | 0.06 m |
Height | 0.09 m |
Weight | 481 g |
