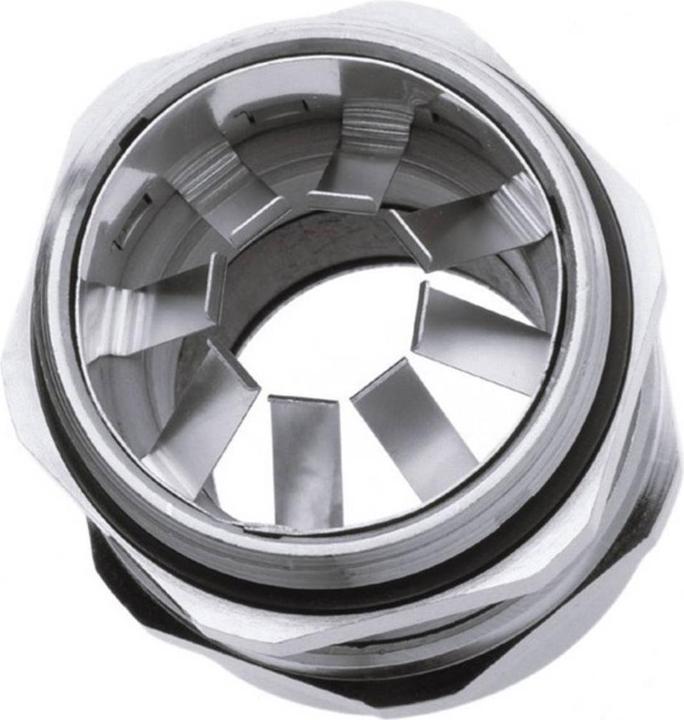

Lapp MS cable gland

Lapp accessories MS cable gland MS-SC M 40x1.5

Manufacturer: Lapp accessories
Designation: MS cable gland SKINTOP
Type: MS-SC M 40x1.5
Thread type: Metric
Nominal thread size metric/PG: 40
Thread pitch: 1.5 mm
Thread length: 9 mm
Width across flats: 45 mm
Hexagon square dimension: 0 mm
Suitable for cable diameter: 19 to 28 mm
Material: Metal
Material grade: Brass
Surface protection: Nickel-plated
Halogen-free: No
Glass-fibre reinforced: No
Protection class (IP): IP68
Impact-resistant: No
Bending protection: No
With locknut: No
Engaging in opening: No
Version: Straight
Multiple sealing insert: No
Flat cable gland: No
With strain relief: No
Type of seal: Sealing ring
Separable gland: No
Operating temperature: -30 to 100 °C
Explosion-proof version: No
For Ex-zone gas: Without
For Ex-zone dust: Without
For armoured cables: No
EMC version: Yes
Shielded: Yes

Lapp accessories MS cable gland MS-SC M 40x1.5: More details
For EMC-compatible earthing of the copper shielding braid, or for cables with copper wave sheath, suitable for telecommunication, mechanical and plant engineering, measurement and control technology, and automation technology. Suitable for cables and conductors with and without inner sheath. Also suitable for continuation of the cable shielding to a cable with inner sheath. Low-resistance shield contact for optimum EMC protection. Highly conductive, flexible EMC contact spring allows easy installation of different shield diameters with few work steps. Simple installation with a metric connection thread according to DIN EN 60423. Basis for technical specifications DIN IEC 62444. EAN: 4044773170573.
