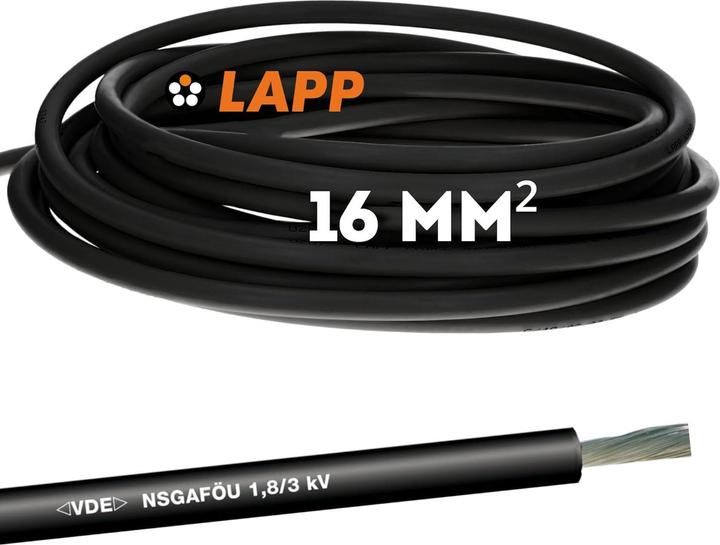

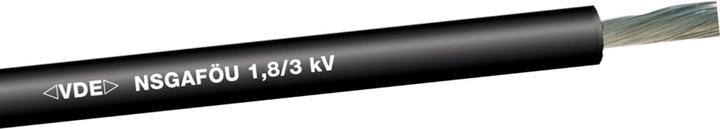

Lapp 10m 1600305 NSGAFÖU 1 x 16 mm² Black I Flexible cable with rubber insulation

10 m
CHF6.10/1m
Ratings
Delivered between Fri, 30.5. and Wed, 4.6.
5 items in stock at third-party supplier
Supplied by

Product details

The NSGAFÖU is a premium single-core rubber cable with a conductor cross-section of 1 x 16 mm². This single-core cable meets the highest standards for power connections and electrical installations. The black, flexible cable is ideally suited for control and wiring applications. Its impressive flexibility not only facilitates installation but also ensures reliability in demanding environments. Thanks to the weather-resistant rubber material, this 16 mm² stranded cable is not only robust but also perfect for outdoor use. Rely on the proven quality of Lapp Kabel. Our power cable represents not only top performance but also durability and safety in every connection.

Technical Data:
Product Type: Connection Cable
Rated Voltage: U0/U: 1.8 / 3 kV AC rms according to IEC
Test Voltage: 6kV
Nominal Conductor Cross-Section: 16 mm²
Conductor Material: Tin-plated Copper
Conductor Structure: IEC 60228 Class 5: fine stranded
Number of Wires: 1
Max. Outer Diameter: 7 mm
Base Material of Conductor Insulation: Rubber (Elastomer)
For Torsional Stress: No
Minimum Bending Radius, Fixed Installation: 6 x Outer Diameter
Minimum Bending Radius in mm, Fixed Installation: 42 mm
Minimum Bending Radius, Occasionally Moved: 10 x Outer Diameter
Minimum Bending Radius in mm, Occasionally Moved: 70 mm
Temperature, Fixed Installation: -40 °C to 90 °C.

Key specifications

cable type
Data cable
Cable cross section
16 mm²
Cable length
10 m
Exact colour description
Black
Item number
53879231

General information

Manufacturer
Lapp
Category
Cable conductors
Manufacturer no.
10148874-10
Release date
4.1.2025

Colour

Colour
Black
Exact colour description
Black

Material

Material
Rubber (caoutchouc)
Material of the isolation
Rubber

Cable properties

cable type
Data cable
Cable cross section
16 mm²
Number of cores
1 x
Contact material
Copper

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Cable length
10 m
Outside diameter
7 mm
