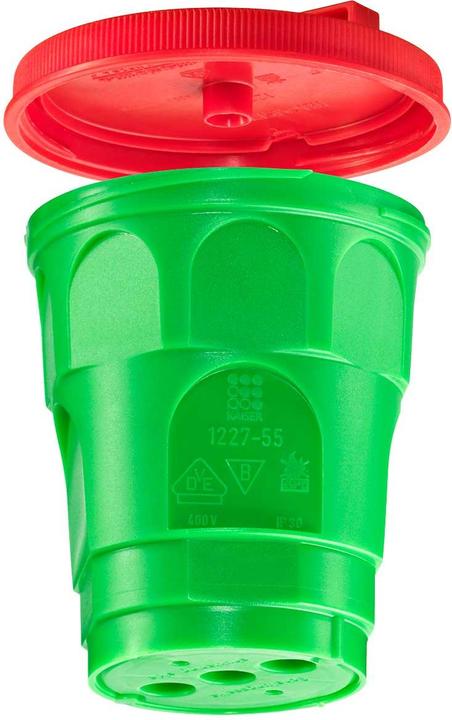

Kaiser Plate ceiling large can

Kaiser Ceiling Plate Large Box 1227-55

Manufacturer: Kaiser
Description: Ceiling Plate Large Box EH 115mm
Type: 1227-55
Installation Type: Concrete Construction
Shape: Round
Design: Device Connection Box
Version: Single
With Rotatable Ring: No
Coupleable: No
Filling: None
Diameter: 60 mm
Length: 102 mm
Width: 102 mm
Depth: 115 mm
Internal Depth: 106.5 mm
Device Mounting: Screws
With Screws: No
Housing Entry via Knockout: Yes
Housing Entry via Sealing Membrane: No
Housing Entry via Pipe Connector: No
Housing Entry via Step Membrane: No
For Pipe Diameter: 32 mm
Suitable for Cable Diameter: 0..16 mm
Pipe Locking: No
Pipe Locking Optional: No
Rear Entry: No
Number of Entries: 12
Material: Plastic
Halogen-Free: Yes
Color: Green
Protection Class (IP): IP3X
Cover Design: None
Transparent Cover: No
Cover Attachment: Bayonet Lock
Sealability: No
Function Preservation: None
With Shielding: No
Air Tight: No
Max. Conductor Cross-Section: 2.5 mm²
Light Hook Attachment: Yes
Connector: None
Special Application: Other
With Partition: No

Kaiser Ceiling Plate Large Box 1227-55: Additional Details
Ceiling Plate Large Box 115 (1227-55). Ceiling Plate Large Box for factory installation in modular ceilings. The ceiling plate large boxes are already part of the ceilings when they arrive at the construction site, allowing for quick empty conduit installation on-site.
EAN: 4013456330511.
