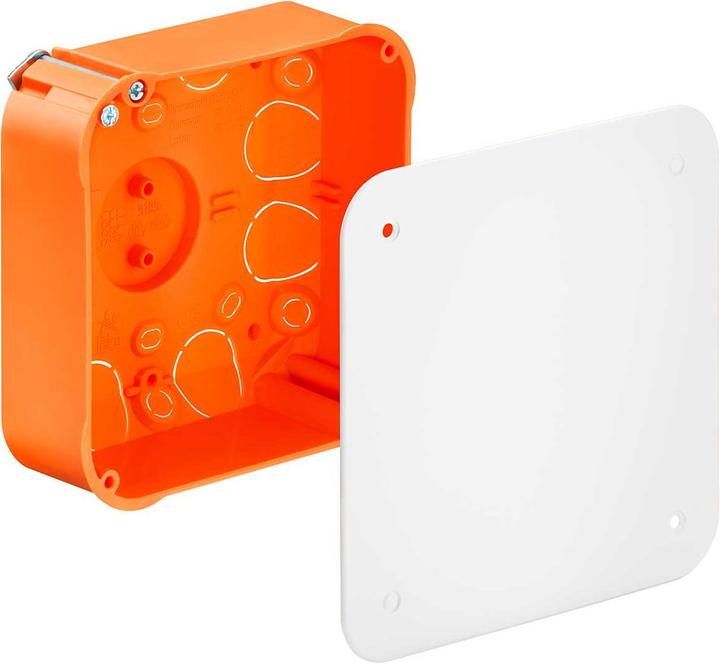

Kaiser Junction box

Kaiser Junction Box 9195-91

Manufacturer: Kaiser
Designation: Junction box 107 x 107 x 53 mm
Type: 9195-91
Mounting type: Hollow wall
Shape: Square
Design: Connection box
Version: Single
With rotating ring: No
Coupleable: No
Filling: None
Diameter: 35 mm
Length: 105 mm
Width: 105 mm
Depth: 53 mm
Device fastening: Screws
With screws: Yes
Housing entry through knock-out opening: Yes
Housing entry through sealing membrane: No
Housing entry through pipe connector: No
Housing entry through stepped membrane: No
For pipe diameter: 20 mm
Pipe locking: No
Pipe locking optional: No
Rear entry: Yes
Number of entries: 12
Material: Plastic
Halogen-free: No
Color: Orange
Protection class (IP): IP3X
Cover design: Blind cover
Transparent cover: No
Cover fastening: Screwed
Sealability: No
Function maintenance: None
With shielding: No
Air-tight: No
Max. conductor cross-section: 4 mm²
Light hook fastening: No
Connector: None
Special application: Other
With partition wall: No

Kaiser Junction Box 9195-91: Additional details
Connection box 105 x 105 x 53 mm (9195-91). Connection boxes in all sizes and for almost all tasks. This program is characterized by its practical housing sizes and the construction of the housings that is robust and suitable for construction sites.
Installation type: Basic installation
Application area: For cable connections
Depth: 53 mm
Milling hole Ø: 4 x 35 mm
Length: 105 mm
Width: 105 mm.
