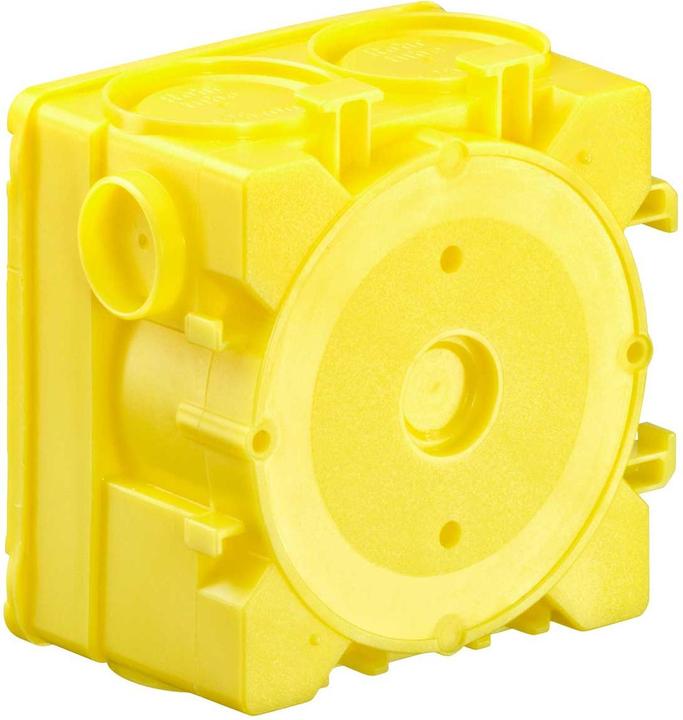

Kaiser Junction box

Kaiser junction box 1262-60
Manufacturer: Kaiser
Designation: Junction box
Height: 48.5 mm
Type: 1262-60
Mounting type: Concrete construction
Shape: Round
Design: Device junction box
Design: Single
With rotating ring: No
Couplable: Yes
Equipment: Without
Diameter: 60 mm
Depth: 48.5 mm
Inner depth: 48.5 mm
Mounting of devices: Screw
With screws: No
Housing feed-through through knock-out opening: No
Housing feed-through through sealing membrane: No
Housing feed-through through pipe socket: No
Housing feed-through through stepped diaphragm: No
For pipe diameter: 16 mm
Pipe locking: No
Pipe locking optional: No
Insertion from rear: Yes
Material: Plastic
Halogen-free: Yes
Color: Yellow
Protection class (IP): IP3X
Cover design: Without
Transparent cover: No
Sealable: No
Function maintenance: Without
With shielding: No
Airtight: No
Luminaire hook fastening: No
Socket: Tunnel spigot
With nail lugs: No
Special application: Other
Kaiser junction box 1262-60: More details
Concrete construction B² junction box, with plaster skin, depth 48.5 mm.
