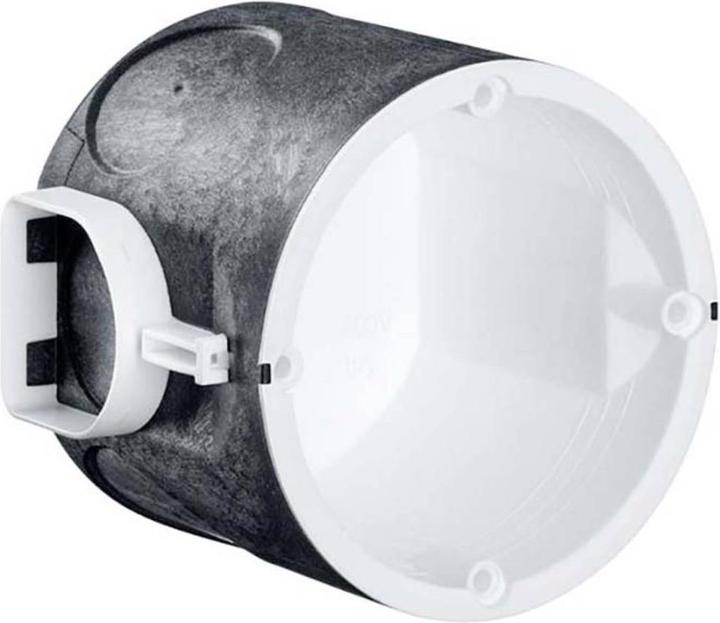

Kaiser Flush-mounted device junction box

Kaiser Flush-Mounted Device Connection Box 1564-01

Manufacturer: Kaiser
Description: Flush-mounted device connection box for fire protection walls
Type: 1564-01
Mounting method: Flush-mounted
Shape: Round
Design: Device connection box
Version: Single
With rotating ring: No
Coupleable: Yes
Filling: None

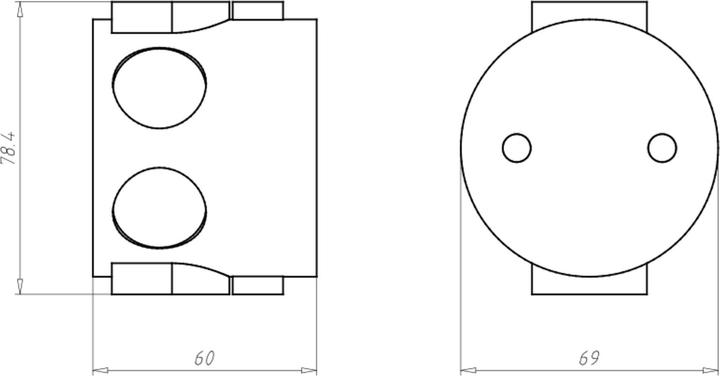

Diameter: 60 mm
Depth: 60 mm
Internal depth: 60 mm
Suitable for wall/plating thickness: 110 mm
For number of device inserts: 1
Device fastening: Screws
With screws: No
Housing passage through breakout opening: No
Housing passage through sealing membrane: No
Housing passage through pipe stub: No
Housing passage through stepped membrane: No
For pipe diameter: 20/25 mm
Suitable for cable diameter: 4..15 mm
Pipe locking: No
Pipe locking optional: No
Rear entry: No
Number of entries: 6
Material: Plastic
Halogen-free: Yes
Color: White
Protection class (IP): IP2X
Cover design: None
Transparent cover: No
Cover fastening: Screwed
Seal-able: No
Function preservation: None
With shielding: No
Air-tight: Yes
Max. conductor cross-section: 2.5 mm²
Clamp position fixed: No
Light hook fastening: No
Stub: Tunnel stub
Special application: Fire protection
With partition wall: No

The flush-mounted fire protection box (1564-01) maintains the fire resistance duration in fire protection walls of solid construction EI30-EI120 despite installed electrical installations. Even when the required minimum remaining wall thickness of 60 mm is not met in one-sided or directly opposite installation cases, the fire protection box ensures a secure and smoke-tight room closure. An integrated insulation layer former quickly and reliably seals the installation opening in the event of a fire, thus preventing the transmission of flames and smoke gases. Additionally, the continuation of fire due to insufficient remaining wall thicknesses is excluded.
Depth: 60 mm | Halogen-free: Yes.
