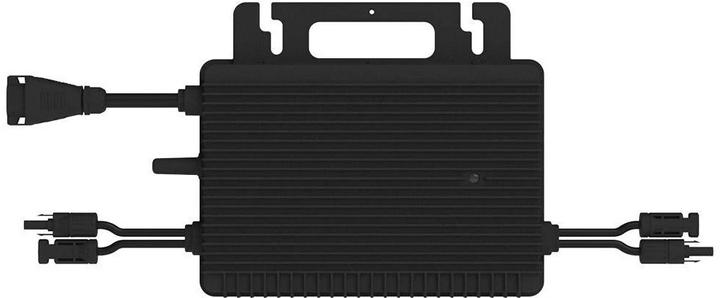

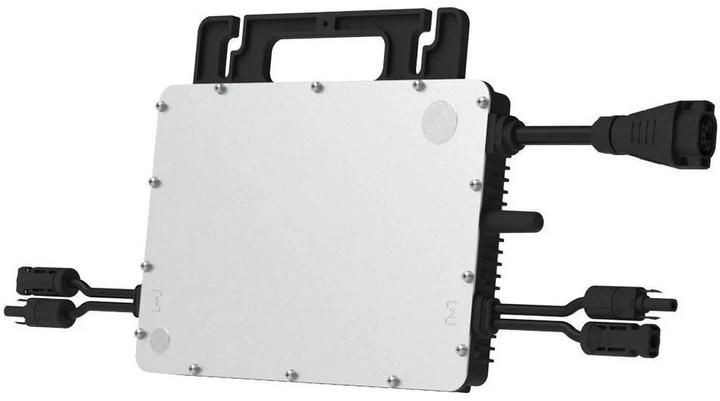

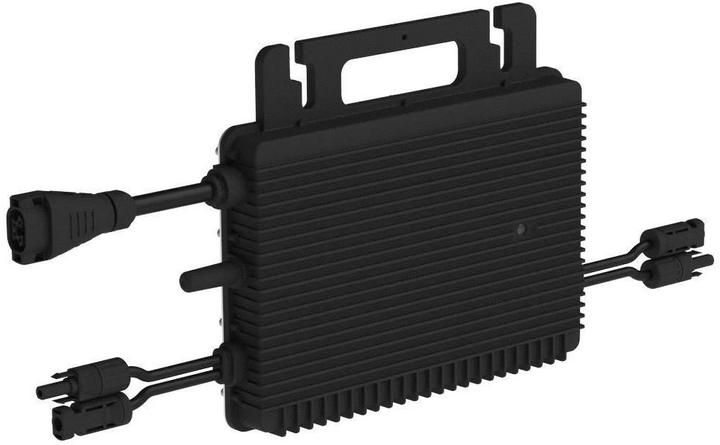

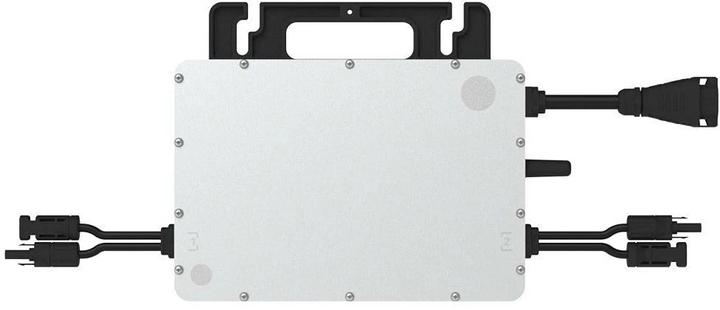

Hoymiles HMS-1000-2T

The HMS-1000 (MPN: HMS-1000-2T) from Hoymiles is the perfect micro inverter for your balcony power plant. The compact lightweight (only 3.2 kg) is suitable for solar power production with up to two solar panels up to an output of 400 to 670+ W each. Just like all other microinverters from Hoymiles, it is suitable for long operating hours and wide PV module applications, as its commissioning is very low (only 22 V) and the DC input range of the operating voltage (16-60 V) is extremely wide. Compared to its predecessor model from the HM series, the HMS-1000 offers more safety for rooftop solar power plants thanks to its quick shutdown and isolated transformer. The sub-1G radio solution enables more stable communication with the Hoymiles gateway DTU.

Features:

• Minimisation of the effects of e.g. shading, dust or ageing through MPPT
• High-quality energy generation with high MPPT accuracy
• Optimum system reliability
• Peak efficiency of 96.5%
• High level of safety thanks to integrated protection functions
• Simple installation
• Long service life
• Complies with EN50549-1:2019, VDE-AR-N 4105: 2018, VFR2019, IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3
• Optionally possible: Monitoring via S-Miles App or S-Miles Cloud. A DTU Lite-S is required for system monitoring.
