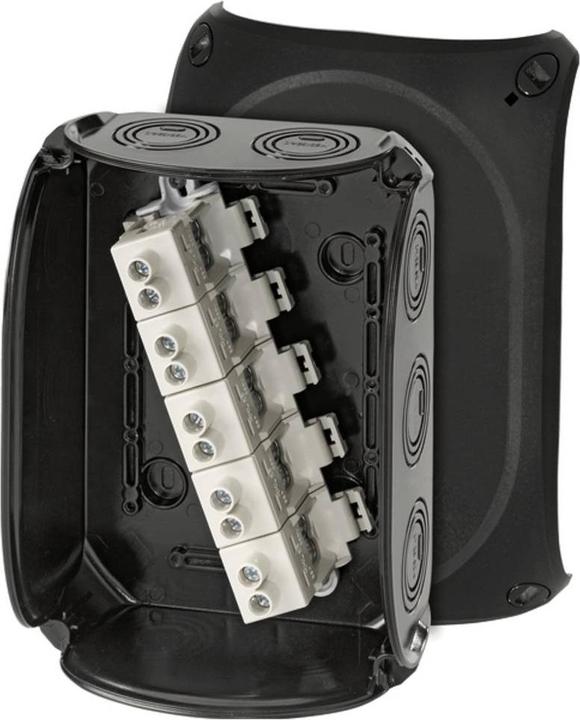

Hensel Cable Junction Box KF 1616 B

Manufacturer: Hensel
Designation: Cable junction box 6-16 5-pole
Type: KF 1616 B
Max. conductor cross-section: 25 mm²
Configuration: Screw terminal
Shape: Rectangular
Mounting type: Wall/Ceiling mounting
For pipe diameter: Other
Rear entry: Yes
Length: 210 mm
Width: 155 mm
Depth: 92 mm
Stackable: No
Number of entries: 10
Type of housing entry: Pre-formed
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Color: Black
Protection class (IP): IP66/IP67/IP69
Cover design: Other
Cover fastening: Screwed
Pourable: No
Supplied with casting compound: No
Seal-able: Yes
Rated insulation voltage Ui: 690 V
Function maintenance: None
With shielding: No
Weather-resistant: Yes
Operating temperature: -25..70 °C
Explosion-tested version: No
For Ex zone gas: None
For Ex zone dust: None

Hensel Cable Junction Box KF 1616 B: Additional details
Cable junction box made of high-quality thermoplastic for unprotected outdoor installation or surface-mounted applications in buildings. Resistant to weather influences such as UV exposure from sunlight, protected against rainwater, temperature-resistant, and impact-resistant. Cover fastening via quick locks. With external tabs for mounting. Sea water resistant, suitable for offshore applications. Approved for installation on ships. Terminal with 2 connection points per pole up to 10 mm², 5-pole. Cable entry through metric pre-formed entries in the housing walls and base. Mounting cable bushings available as accessories.
