Hensel Cable junction box

Hensel junction box WP 0404 G
Manufacturer: Hensel
Designation: Junction box 1.5-4 qmm 3-phase
Type: WP 0404 G
Max. conductor cross-section: 6 mm²
Equipment: Terminal
Shape: Square
Mounting type: Wall/ceiling mounting
For pipe diameter: Other
Entry from rear: No
Length: 104 mm
Width: 104 mm
Depth: 70 mm
Bayable: No
Number of entries: 7
Type of housing feed-through: Pre-stamped
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Color: Gray
Protection class (IP): IP68
Cover design: Other
Cover fixing: Screwed
Pourable: Yes
Supplied with potting compound: Yes
Sealable: Yes
Rated insulation voltage Ui: 690 V
Functional integrity: None
With shielding: No
Weatherproof: Yes
Operating temperature: -25 to 70 °C
Explosion-proof design: No
For Ex zone gas: Without
For Ex zone dust: Without

Hensel cable junction box WP 0404 G: More details

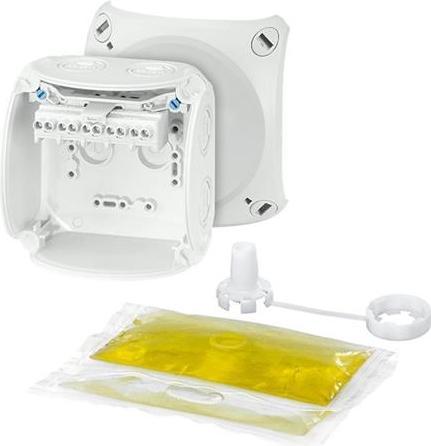

Cable junction box made of high-quality thermoplastic for potting for a watertight connection. Suitable for unprotected installation outdoors where there is a risk of condensation and/or ingress of liquids, and for installation in the ground without live loads. Can be used for heating cable/heating tape up to a maximum of 70 °C surface temperature. For subsequent installations or tests, the cover can be removed and the sealing compound taken out. Lid fastening via quick-release fasteners. With external lugs for fastening. With terminals up to 4 mm², 5-pole. Cable entry via metric pre-stamping in housing walls. Add-on cable glands available in accessories. Supplied with potting compound and sealing plugs.
