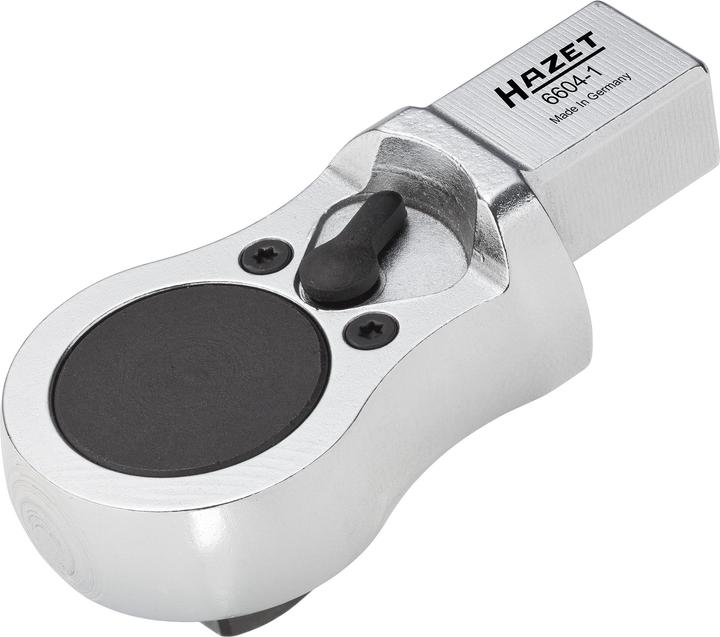

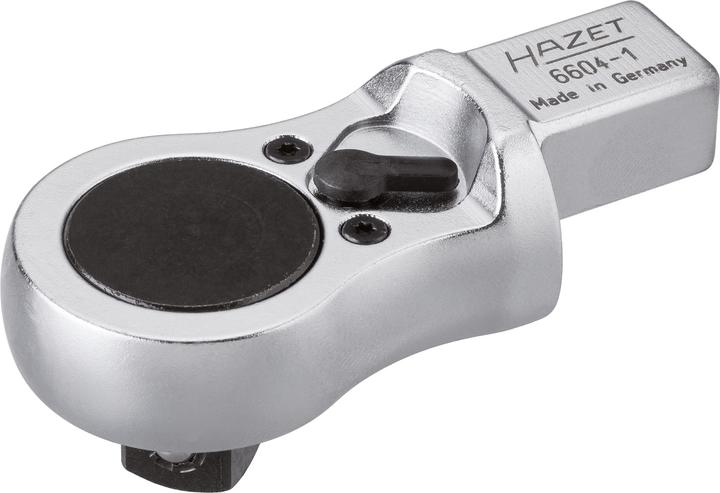

Product details

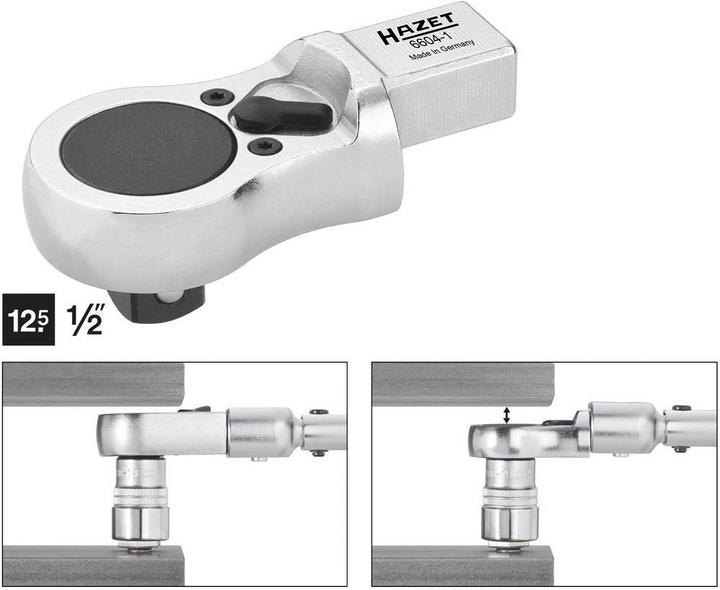

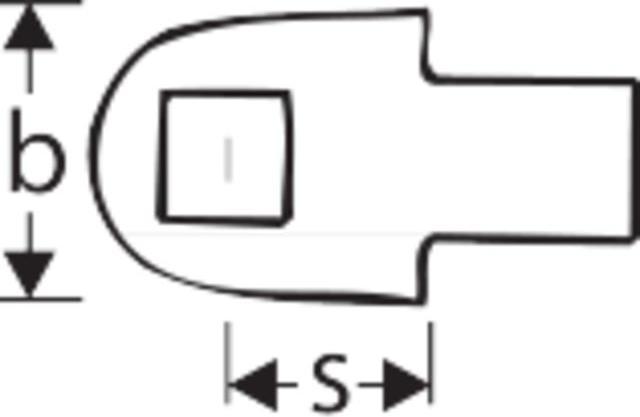

40 teeth ∙ Operating angle 9° maximum 200 Nm (6602-1) maximum 320 Nm (6604-1) Surface: chrome-plated DIN 3120, ISO 1174-1 Made in Germany Drive: Insert square 14 x 18 mm Output: Square, solid 12.5 mm (1/2 inch) Dimensions / length: 81 mm Net weight: 0.26 kg For manual operation Number of teeth: 40 (Opening angle 9°) Inside micrometre of the adjusting tool l2: 36 mm Head Thickness a: 14.3 mm Head thickness (a1): 20.5 mm Head Width b: 40 mm
Ratchet type | Reversible ratchet |
Item number | 8500766 |
Colour | Silver |
Exact colour description | Chrome-plated |
Material group | Metal |
Material | Chrome vanadium steel |
Surface finish | Chromed |
Ratchet type | Reversible ratchet |
actuator size | 1/2" |
Max. torque | 320 Nm |
DIN standard | DIN 3120, ISO 1174-1 |
Power supply | Manual |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Socket reversible ratchet 6604-1 ∙ Socket square 14 x 18 mm ∙ Square 12.5 mm (1/2 inch) |
Length | 81 mm |
Width | 40 mm |

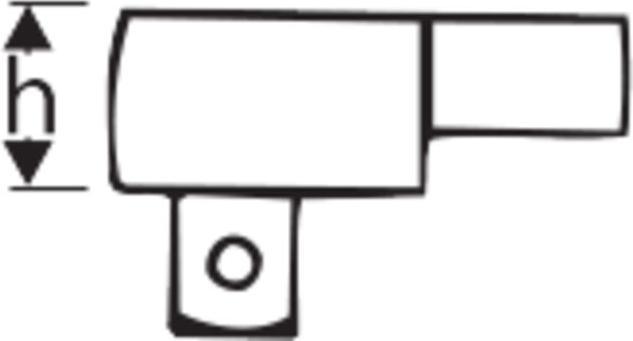

Height | 14.30 mm |
Weight | 260 g |
Length | 15.50 cm |
Width | 8 cm |
Height | 3.20 cm |
Weight | 268 g |
