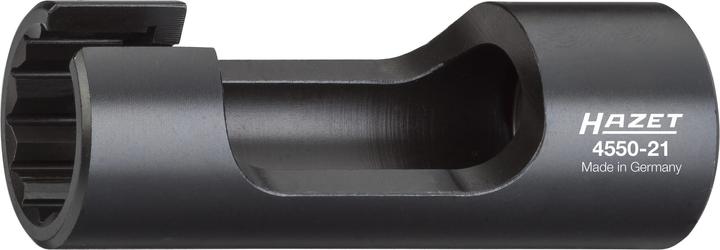

HAZET Injection pipe spanner 4550-21 - Square hollow 12.5 mm (1/2 in.) - External-

Special design of the socket spanner insert ensures proper mounting of the injection line screw connection.

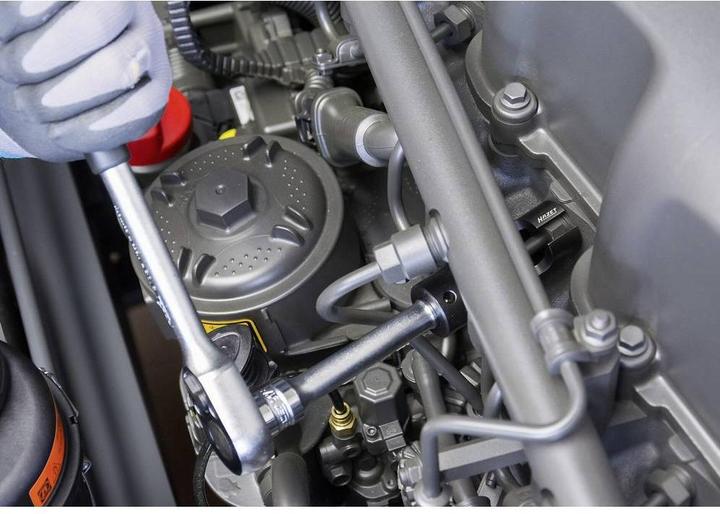

Application: For operating the union nut on the high-pressure line on the injection valve common rail injection system.

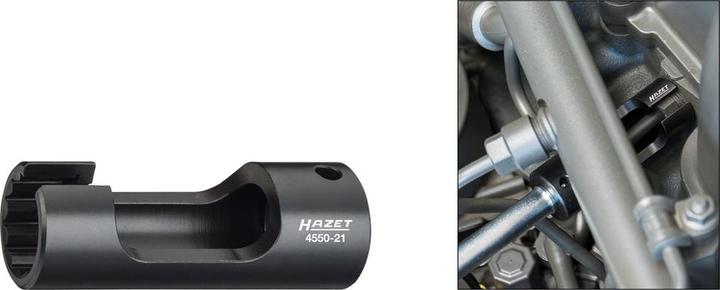

Open double hexagon socket spanner insert for injection lines.

The tightening torque required by the manufacturer is achieved by using a HAZET torque spanner (observe manufacturer's specifications).

Surface: Burnished.

Made in Germany.

Compatible with DAF Euro 6 engines MX11/MX13, e.g., XF, CF.

Inner square (Robertson) drive 12.5 mm (1/2 inch).

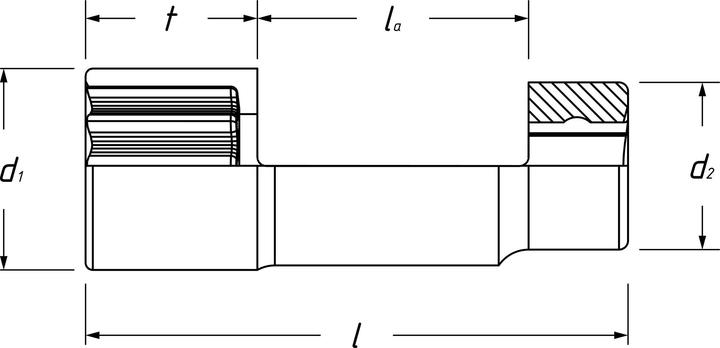

Width across flats: 21 mm.

Total length: 91 mm.

Drive: Square hollow 12.5 mm (1/2 inch).

Output: External double hexagon profile.

Diameter d1 (at output): 33 mm.

Diameter d2 (at the drive): 32 mm.

Technical data:
Mass weight: 0.294 kg.
Length: 91 mm.
Weight: 294 g.

Item number: HAZ4550-21.
