hansgrohe ShowerSelect Comfort Q thermostat, concealed, 1 consumer, one additional outlet, Soft Egde

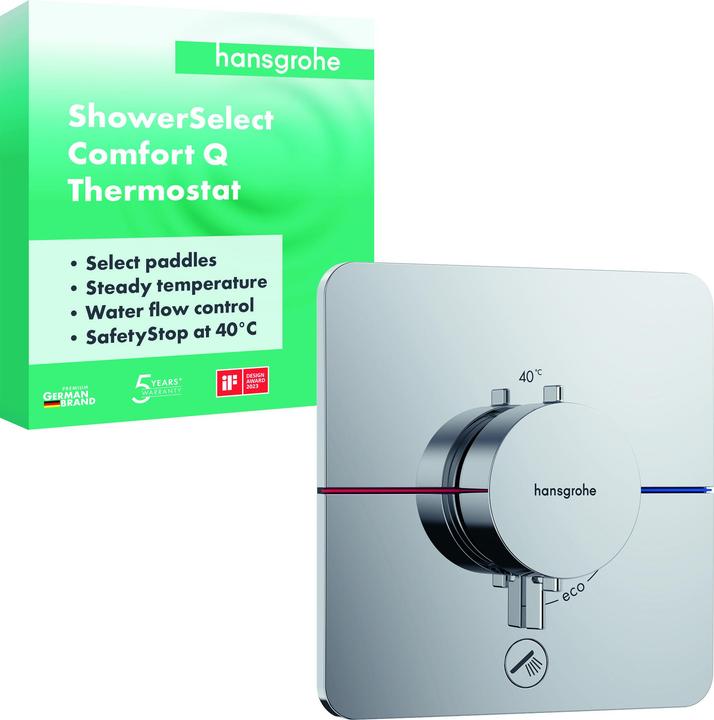

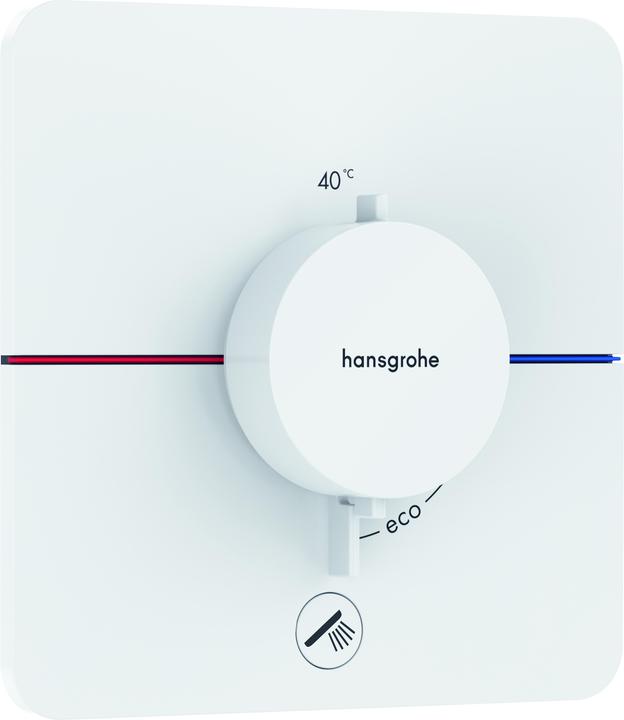

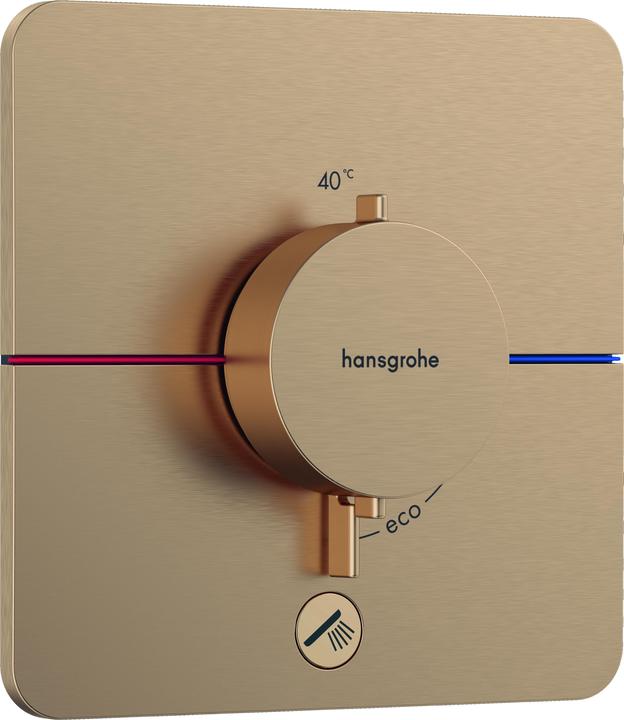

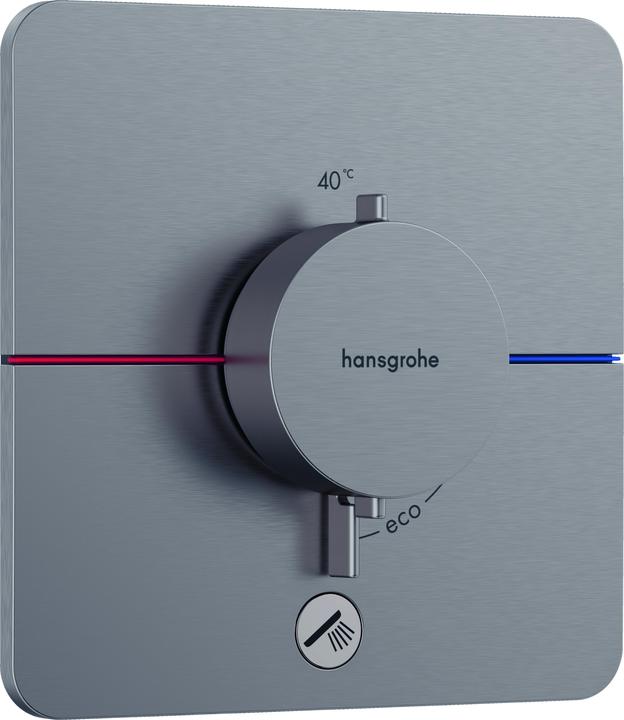

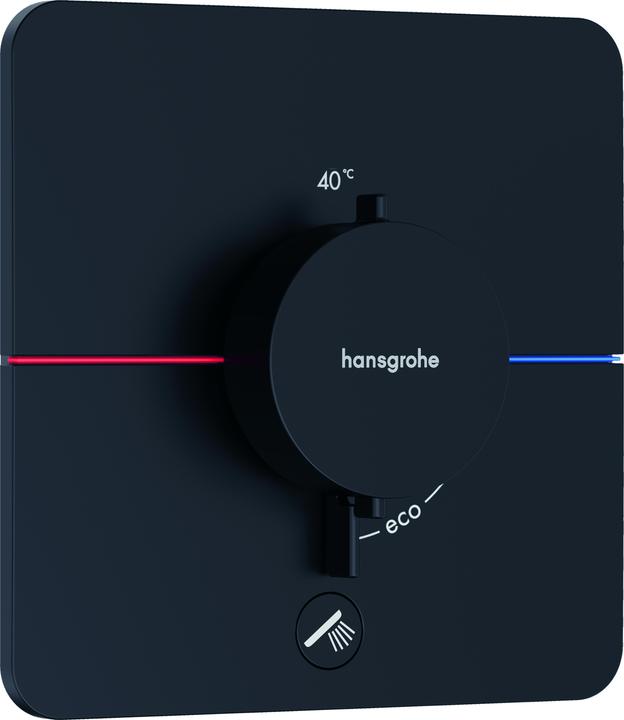

Hansgrohe ShowerSelect Comfort Q 1 x Concealed Thermostat

Product Details:

• For one user and an additional outlet
• Large Select button for comfortable on/off control of a user
• Volume control with stop function
• Thermostat cartridge and start/stop valve for user operation
• Flat rosette for more space in the shower
• Soft Edge rosette adjustable by +/- 3° after installation
• Pre-assembled function block for easy installation
• Handle always at the same height regardless of the installation depth of the main body
• Adjustable temperature limit
• Safety lock at 40 °C
• Thermostat allows for thermal disinfection
• Material (handles/button): Metal
• Thermostat includes small and large Rain buttons as well as hand shower, overflow, and tub

Technical Data:

• Connection type: Basic body iBox universal 2 (Item No.: 01500180)
• Basic body not included, please order separately
• Max. flow rate at 3 bar: 32.8 l/min
• Flow rate upper outlet: 23 l/min
• Flow rate lower outlet: 23 l/min
• Min. operating pressure: 1 bar
• Max. operating pressure: 10 bar
• Noise group: I
• Flow class: B

Scope of Delivery:

• Thermostat
• Function block
• Mounting materials and installation instructions.
