hansgrohe 56112800 RainDrain Spot Point Drain

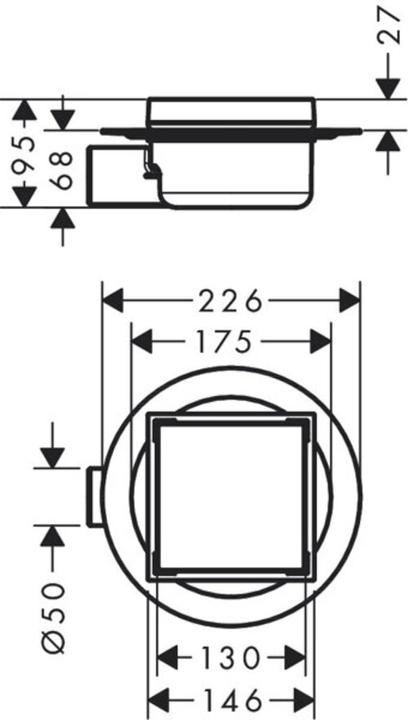

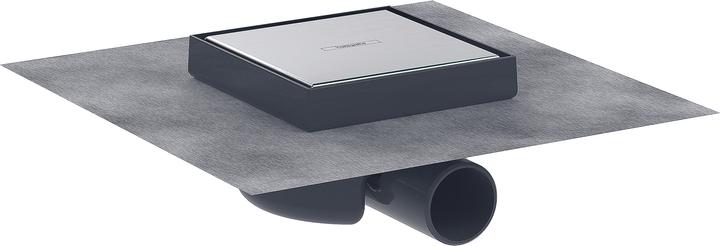

Hansgrohe RainDrain Spot Complete Set Point Drain 150/150 is a rear tileable drain that includes a design cover, main body, siphon, and factory pre-assembled sealing fleece. It features a water seal height of 50 mm, a nominal connection diameter of DN 50, and allows for both horizontal and vertical outlet directions. The frameless design includes a height-adjustable cover.

This product is suitable for new construction and renovation projects, accommodating any type of tile and tile thickness. It has a removable siphon with a swivel and adjustable siphon housing, and uses liquid for odor sealing. The minimum installation height is 78 mm, and it comes with a pre-assembled sealing membrane. The siphon is made of ABS, and the installation type is free-standing and wheelchair accessible, with a grate width of 146 mm.

Additional technical features include a removable water trap, lockable design, a width of 226 mm, and an installation depth of 3.74 mm. The adjustable attachment piece is included, and the grate is made of stainless steel with a glossy finish. The height is 104 mm, and the water seal height is 50 mm. The product is height adjustable, with a length of 226 mm. It does not have a loose edge, and the grate material is classified as other, while the channel is made of stainless steel.

Other specifications include no fire protection sleeve, inclusion of a grate and siphon, a nominal connection diameter of DN 40, and an outer pipe diameter of 40 mm. The product is not sound insulating, features an enlarged sealing flange, and both the grate and channel are made of stainless steel 304 (1.4301).
