Product details

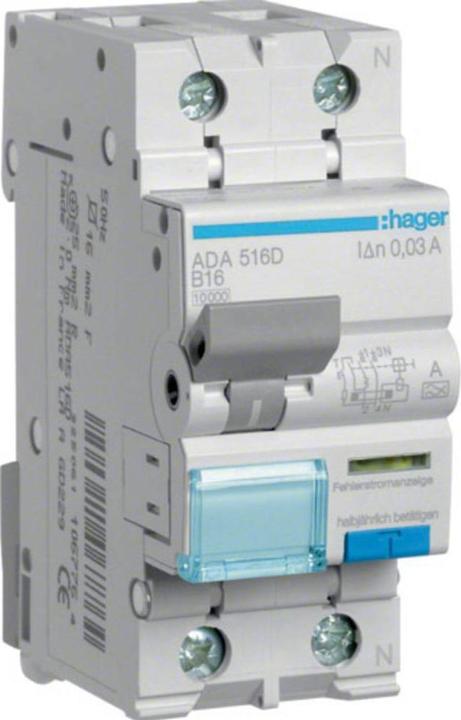

Hager RCD/MCB Switch ADA516D

Manufacturer: Hager
Designation: RCD/MCB Switch 1P+N 10kA B-16A 30mA
Type: ADA516D
Number of Poles (total): 2
Number of Protected Poles: 1
Rated Voltage: 240 V
Rated Insulation Voltage Ui: 500 V
Rated Impulse Voltage Withstand Uimp: 4 kV
Rated Current: 16 A
Rated Residual Current: 0.03 A
Residual Current Type: A
Energy Limitation Class: 3
Power Loss: 5.2 W
Rated Short-Circuit Breaking Capacity according to IEC 60947-2: 10 kA
Rated Switching Capacity Icn according to EN 61009-1: 10 kA
Tripping Characteristic: Instantaneous
Surge Current Resistance: 0.25 kA
Type of Voltage: AC
Frequency: 50 Hz
Tripping Characteristic: B
Switched Neutral Conductor: Yes
With Locking Mechanism: Yes
Overvoltage Category: 3
Degree of Pollution: 2
Ambient Temperature during Operation: -25..40 °C
Width in Modular Units: 2
Installation Depth: 68 mm
Flush Mounting: Yes
False Tripping Protection: No
Protection Class (IP): IP2X
Connectable Conductor Cross-Section Solid: 1..25 mm²
Connectable Conductor Cross-Section Stranded: 1..16 mm²

Hager RCD/MCB Switch ADA516D: Additional Details
Residual Current Circuit Breaker 1P+N 10kA B-16A 30mA Type A. Residual current circuit breaker according to DIN EN61009-1 (VDE 0664-20) and DIN EN 61009-2-1 (VDE 0664-21) with Bi-Connect terminals at the bottom, blue test button, and residual current display. Easy removal from the phase rail connection. Suitable for retrofitting additional devices. Labeling option directly on the device.

Key specifications

Circuit breaker type
Miniature circuit breaker
Mounting type
Top-hat rail
number of poles
1
Length
68 mm
Width
35 mm

General information

Item number
13030841
Manufacturer
Hager
Category
Residual-current device
Manufacturer No.
ADA516D
Release date
5.4.2020
Sales rank in Category Residual-current device
76 of 13676

Colour

Colour
Grey
Exact colour description
Grey

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
Mounting type
Top-hat rail
Mounting type
Screw fastening
number of poles
1
Tripping characteristic
B
Rated current
16 A
Rated current
0.03 A
Rated voltage
240 V
voltage type
AC
Insulation voltage (Ui)
500 V
Residual current
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
11.53 kg
Climate contribution
CHF 0.27

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
68 mm
Width
35 mm
Height
83 mm
Weight
220 g

Package dimensions

Length
10 cm
Width
8 cm
Height
4 cm
Weight
224 g
