Hager NDN213

Ratings
BrandMore from Hager
Delivered between Sat, 20.6. and Fri, 3.7.
free shipping

Rated current3

Product details

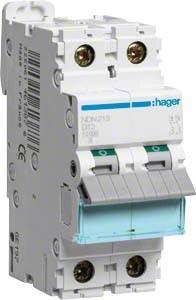

Hager miniature circuit-breaker NDN213

Manufacturer: Hager
Designation: Miniature circuit-breaker 2 poles, D-13A 10kA, 2M
Type: NDN213
Mounting depth: 70 mm
Tripping characteristic: D
Number of poles (total): 2
Number of fused poles: 2
Rated current: 13 A
Rated voltage: 400 V
Rated insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 6 kV
Rated breaking capacity Icn according to EN 60898 at 230 V: 10 kA
Voltage type: AC
Rated breaking capacity Icn according to EN 60898 at 400 V: 10 kA
Rated breaking capacity Icu according to IEC 60947-2 at 230 V: 30 kA
Rated breaking capacity Icu according to IEC 60947-2 at 400 V: 15 kA
Frequency: 50-60 Hz
Energy limitation class: 3
Flush-mounted: Yes
Neutral conductor to be connected: No
Overvoltage category: 3
Degree of pollution: 2
Additional devices possible: Yes
Width in pitch units: 2
Protection class (IP): IP20
Ambient temperature during operation: -25 to 70 °C
Connectable conductor cross-section stranded: 1 to 25 mm²
Connectable conductor cross-section solid: 1 to 35 mm²
Explosion-proof: No

Hager miniature circuit-breaker NDN213: further details
Miniature circuit-breaker 2 pole 10kA/15kA D-13A 2M. Miniature circuit breaker according to DIN EN 60898-1 with time-delayed thermal release for overload protection and electromagnetic release for short-circuit protection. Suitable for retrofitting of additional devices. Labelling option directly on the unit and individual removal from the busbar system by unlocking the top-hat rail quick-release fastening.

Key specifications

Circuit breaker type
Miniature circuit breaker
Mounting type
Flush-mounted
number of poles
2
Length
70 mm
Width
35 mm

General information

Item number
33558245
Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
NDN213
Release date
17.5.2023

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
Mounting type
Flush-mounted
Mounting type
Screw fastening
number of poles
2
Tripping characteristic
D
Rated current
13 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IP20

Origin

Country of origin
France

Voluntary climate contribution

CO₂ emissions
18.08 kg
Climate contribution
CHF 0.43

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
70 mm
Width
35 mm
Height
83 mm
