Hager MBS310. Rated current: 10 A, AC input frequency: 50/60 Hz. Type: B-type, Module quantity (max): 3
Free shipping starting at 50.–

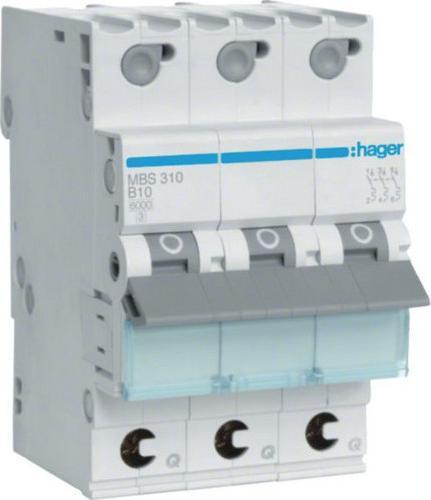

Hager Circuit Breaker MBS310
Manufacturer: Hager
Designation: Circuit breaker 3p B-10A, 6kA, 3M QC
Type: MBS310
Installation depth: 70 mm
Tripping characteristic: B
Number of poles (total): 3
Number of protected poles: 3
Rated current: 10 A
Rated voltage: 400 V
Rated insulation voltage Ui: 500 V
Rated impulse voltage withstand Uimp: 4 kV
Voltage type: AC
Rated switching capacity Icn according to EN 60898 at 400 V: 6 kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V: 10 kA
Frequency: 50..60 Hz
Energy limitation class: 3
Flush-mounted: yes
Switchable neutral conductor: no
Overvoltage category: 3
Degree of pollution: 2
Additional devices possible: yes
Width in modular units: 3
Protection class (IP): IP20
Ambient temperature during operation: -25..70 °C
Connectable conductor cross-section multi-stranded: 1..25 mm²
Connectable conductor cross-section single-stranded: 1..35 mm²
Explosion-proof: no
Hager Circuit Breaker MBS310: additional details
3-pole circuit breaker 6kA B-characteristic 10A QuickConnect 3 modules. Circuit breaker with QuickConnect terminal according to DIN EN 60898-1 (VDE 0641 Part 11), outgoing up to 16A and incoming for distribution up to 63A, with time-delayed thermal tripping device for overload protection and electromagnetic tripping device for short-circuit protection. Suitable for retrofitting additional devices. Labeling option directly on the device and individual removal from the phase rail connection by unlocking the DIN rail quick fastening.
Circuit breaker type | Miniature circuit breaker |
Length | 70 mm |
Width | 52.50 mm |
number of poles | 3 |
Mounting type | Flush-mounted |
Item number | 20684781 |
Manufacturer | Hager |
Category | Residual-current device |
Manufacturer no. | MBS310 |
Release date | 27.4.2022 |
Circuit breaker type | Miniature circuit breaker |
Mounting type | Flush-mounted |
number of poles | 3 |
Tripping characteristic | B |
Rated current | 10 A |
Rated voltage | 400 V |
voltage type | AC |
Rated insulation voltage Ui | 500 V |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 70 mm |
Width | 52.50 mm |
Height | 83.40 mm |
