Eltako Wide range switching network.

Ratings
BrandMore from Eltako
Delivered between Thu, 12.6. and Tue, 17.6.
Only 1 item in stock at third-party supplier
Supplied by

Product details

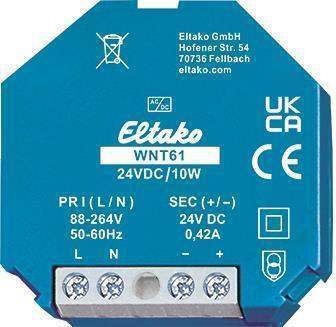

The Eltako wide-range switching power supply WNT61-24VDC/10W is a reliable system power supply designed for installation. With a rated power of 10 watts and a compact design, this switching power supply is ideal for applications where space is a concern. It offers a wide-range input voltage of 88-264V AC, ensuring high flexibility in power supply. The efficiency of 86% provides effective energy conversion, while the standby loss of only 0.1 watts minimizes operating costs. The stabilized output voltage of ±1% and low residual ripple guarantee consistent and reliable performance. Additionally, the device is equipped with protective mechanisms such as short-circuit protection and overload as well as over-temperature protection, allowing for automatic recovery after fault clearance.

  • Wide-range input voltage of 88-264V AC
  • Efficiency of 86% for effective energy conversion
  • Stabilized output voltage with low residual ripple
  • Automatic recovery after overload or over-temperature
  • Compact design for easy installation.

Key specifications

Nominal current
1 A
Nominal voltage
240 V
Protection type (IP code)
IP20
Item number
37735580

General information

Manufacturer
Eltako
Category
Mobile power distributors
Manufacturer no.
61000265
Release date
26.8.2023

Mobile power distributor features

Nominal current
1 A
Nominal voltage
240 V
Area of use
Inside
mounting type
Wall-mounted
Power
0.01 kW
output voltage
24V
Protection type (IP code)
IP20

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
10W, Wide-range switching network. WNT61-24VDC

Product dimensions

Width
45 mm
Length
33 mm
Height
45 mm

30-day right of return
24 Months Warranty (Bring-in)
