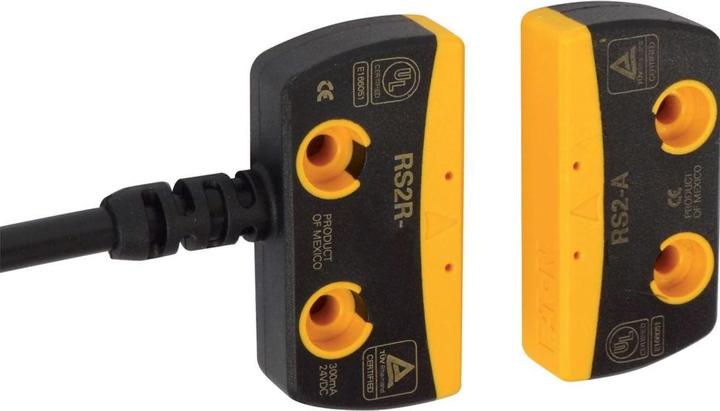

Eaton Safety switch, RS, 2 Ö, Reed- 177292

Eaton safety switch RS2R-02-C3 Manufacturer :Eaton Designation :Safety switch Type :RS2R-02-C3 With status display :no Suitable for safety functions :yes Width of sensor :26 mm Height of sensor :13 mm Length of sensor :52 mm Positive break :no Number of safety-related auxiliary contacts :2 Number of contacts as break contacts :2 Switching element design :other Rated operational current Ie at AC-15, 24 V :0 A Rated operational current Ie at AC-15, 125 V :0 A Rated operational current Ie at AC-15, 230 V :0 A Rated operational current Ie at DC-13, 24 V :0.3 A Rated operational current Ie at DC-13, 125 V :0 A Rated operational current Ie at DC-13, 230 V :0 A Enclosure design :Cuboid Enclosure material :Plastic Enclosure coating :Plastic-coated Interface design :without Design of the interface for safety-related communication :without Design of the electrical connection :with cable pre-assembled Explosion protection category for gas :without Explosion protection category for dust :without Ambient temperature during operation :-10..55 °C Protection class (IP) :IP67 Protection class (NEMA) :other Eaton safety switch RS2R-02-C3: further details Non-contact safety switch, switching distance according to IEC 60947-5-2, SL up to Ple ISO 13849, SL up to SIL3 according toIEC 62061, 2NC, 3m cable , EAN: 40150817453.
