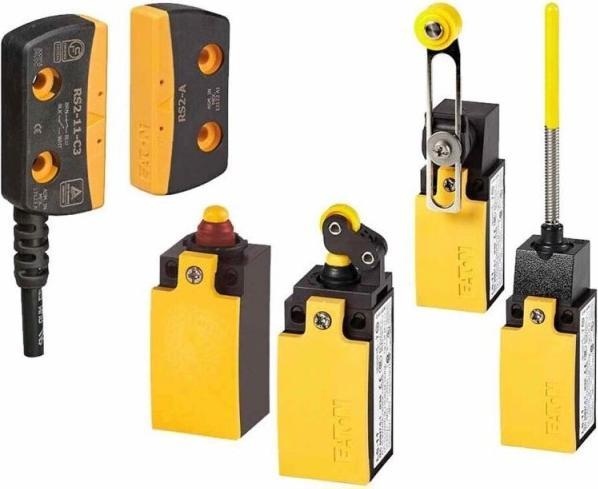

Eaton Position switch, spring rod, 106805

Eaton position switch LS-S11S/S
Manufacturer: Eaton
Designation: Position switch 1S 1Ö Spring rod antr.
Type: LS-S11S/S
Width of sensor: 31 mm
Diameter of sensor: 0 mm
Height of sensor: 61 mm
Length of sensor: 33.5 mm
Rated operational current Ie at AC-15, 24 V: 6 A
Rated operational current Ie at AC-15, 125 V: 6 A
Rated operational current Ie at AC-15, 230 V: 6 A
Rated operational current Ie at DC-13, 24 V: 3 A
Rated operational current Ie at DC-13, 125 V: 0.8 A
Rated operational current Ie at DC-13, 230 V: 0.3 A
Switching function: Snap-action contact
Switching function latching: No
Electronic output: No
Positive break: No
Number of safety-related auxiliary contacts: 1
Number of contacts as NC contacts: 1
Number of contacts as NO contacts: 1
Version of the interface: Without
Version of the interface for safety-related communication: Without
Enclosure construction: Cuboid
Material of the enclosure: Plastic
Coating of the enclosure: Other
Version of the actuating element: Spring rod
Orientation of the actuating element: Roller plunger transverse
Design of electrical connection: Cable entry (metric)
With status indicator: No
Suitable for safety functions: Yes
Explosion protection category for gas: Without
Explosion protection category for dust: Without
Ambient temperature during operation: -25 to 70 °C
Protection category (IP): IP66/IP67
Protection category (NEMA): Other
Eaton position switch LS-S11S/S: Further details
Position switch, basic function: Position switch
Type identifier: LS(M)-¿
Range: Spring rod
Protection category: IP66, IP67
Features: Complete device
Ambient temperature: -25 to +70 °C
Snap-action contact: Yes
Description: Do not use as safety position switch
Contact configuration S = NO contact: 1 S
Contact configuration Ö = NC contact: 1 Ö
Colour of housing cover: Yellow
Housing: Plastic
Connection type: Screw terminal
Rod length: 126 mm
Standards and regulations: IEC/EN 60947
EAN: 4015081065721.
