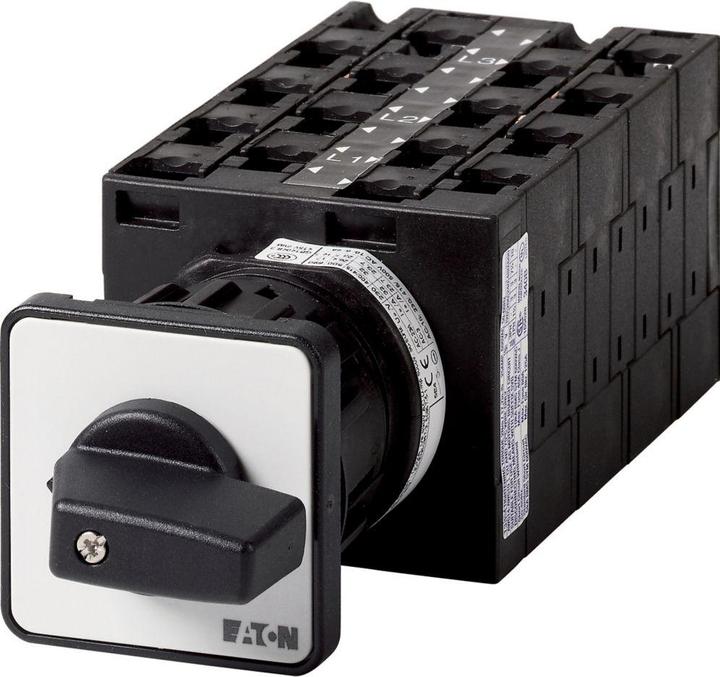

Eaton Pole-changing switch, T3, 32 A, central installation, 5614

Ratings
BrandMore from Eaton
Currently out of stock
Free shipping starting at 50.–

Product details

The Eaton T3 changeover switch is a high-quality control device designed for system power supply. With a rated current of 32 A and an IP65 protection rating, this switch offers reliable performance in demanding environments. The central installation allows for easy integration into existing systems. The switch features a front panel with positions 0-1-2-3-4, enabling precise control with four speed settings. The latching switching behavior with a 0 position ensures additional safety and user-friendliness. The plastic construction guarantees durability and resilience. The changeover switch meets the standards IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, and UL, making it a trustworthy choice for various applications.

  • IP65 protection rating for use in harsh environments
  • Latching switching behavior with 0 position for enhanced safety
  • Front panel with clear positions 0-1-2-3-4
  • Complies with international standards such as IEC/EN 60947 and UL
  • Suitable for applications up to 15 kW at 400 V AC-23A.

Key specifications

Nominal current
32 A
Protection type (IP code)
IP65

General information

Item number
33802562
Manufacturer
Eaton
Category
Mobile power distributors
Manufacturer No.
5614
Release date
17.5.2023

Material

Material group
Plastic
Material
Plastic

Mobile power distributor features

Nominal current
32 A
Number of poles
3x
Actuator Type
Gag
Protection type (IP code)
IP65

Origin

Country of origin
United Kingdom

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
2 x Dahlander, 32 A, 8 Assembly unit(s), Central installation, Contacts: 16, Design: Central installation, Front shield: 0-1-2-3-4, Pole-changing switch, Protection class: Front IP65, Switching angle: 60 °, Switching behaviour: latching, Switching function: 4 speeds, T3, with 0-position
