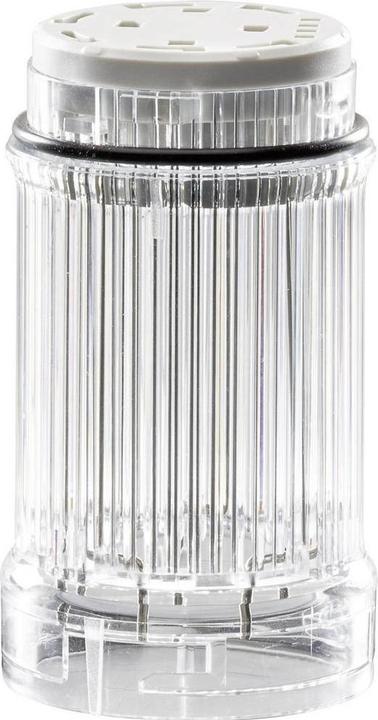

Eaton Permanent LED Beacon, White, 24V, 40mm

Series: SL4
Assembly type: Signal lamp
Current type: AC, DC
Light type: Continuous
Lens color: White
Lamp type: LED
Supply voltage: 24 V AC/DC
Height: 62 mm
Base diameter: 40 mm, 43 mm
Maximum temperature: +60°C

The SL4 modular safety tower from Eaton enhances the safety, productivity, and availability of your machinery and equipment. These new signal towers feature an attractive rounded shape, a 100 dB acoustic module for improved audibility, and IP66-rated mounting hardware that withstands strong water jets. The quick mounting and wiring system allows for easy and rapid changes to the individual signal colors. The mounting adapter uses a bayonet mount, so electrical wiring only needs to be connected once, allowing the lower part to remain on the machine. Various mounting options are available for applications where ceiling clearance is limited or different signals are required on the left or right side. Type approvals and certifications for Europe and North America have been obtained; shipping classifications and CCC are pending.

Features and Benefits:

• Available colors for the international market: red, yellow, green, blue, clear, and orange
• Illumination options: continuous light, flashing light, strobe light, and variable strobe light
• High power LEDs for greater brightness
• Acoustic modules with up to 8 different signals and adjustable volume for optimal adaptation to any environmental conditions
• IP66 protection against strong water jets from any direction
• Modules can be quickly changed with a simple rotation
• Bayonet mount for quick and easy installation and removal
• Transport cover for cables and connectors
• Available in 24, 120, or 230 V versions
• Slim design, ideal for installations where space is limited.
