Name: Inverter Drive 5.5kw 3ph/3ph
Brand: Eaton
SKU: 9761518
Price: 850 CHF
Availability: InStock
Rating: 5 (1 reviews)

productDetailPageQuery

Zurich

Lausanne

Wohlen

Basel

Kriens

Winterthur

Bern

Dietikon

St. Gallen

Geneva

Eaton

Power: 5.5 kW
Phase: 3
Supply voltage: 400 V AC
Rated current: 14 A
For use with: Conveyor belt systems, fan applications, pump
Ambient temperature: +50°C
Total width: 175 mm
Total length: 129 mm
Total depth: 273 mm
Drive type: Vector control
Fieldbus communication type: CANOpen, ModBus-RTU
Filter included: Yes
Standards met: CE, cUL, EAC, RCM, UkrSEPRO, UL

AC drives PowerXL DC1 series - three-phase input, 400 V. The DC1 series variable frequency drives are compact and specially designed for simple applications. With only 14 basic parameters and particularly simple assembly and installation, the DC1 is perfect for quick commissioning. This makes the compact variable frequency inverter ideal for series production applications in machine building. Additionally, further parameters and functionalities can be flexibly activated to enable the DC1 to handle more demanding applications. These variable frequency drives can also be used as stand-alone units directly on site, and they are equipped with a setpoint potentiometer, a selector switch, and a mains changeover switch. Typical applications for this series include fans, pumps, and conveyor belt systems. Features include three-phase input/three-phase motor connection, LED display, quick start-up with 14 basic parameters, V/Hz control with start voltage boost and slip compensation, integrated PI controller, CANopen and Modbus integrated, large overload capacity (150% for 60 seconds, 175% for 2 seconds), and IP20 protection.

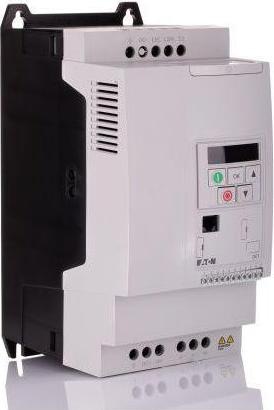

Actual product image Eaton Inverter Drive 5.5kw 3ph/3ph

Key specifications

Mains voltage

Input phase number

Output phase number

Power

Inverter Drive 5.5kw 3ph/3ph

Frequency converters

30-day right of return

General information

Frequency inverter properties

Origin

Product standards

Voluntary climate contribution

Scope of delivery

Product dimensions

Package dimensions

Electric current output
