Eaton EATO switch disconnector

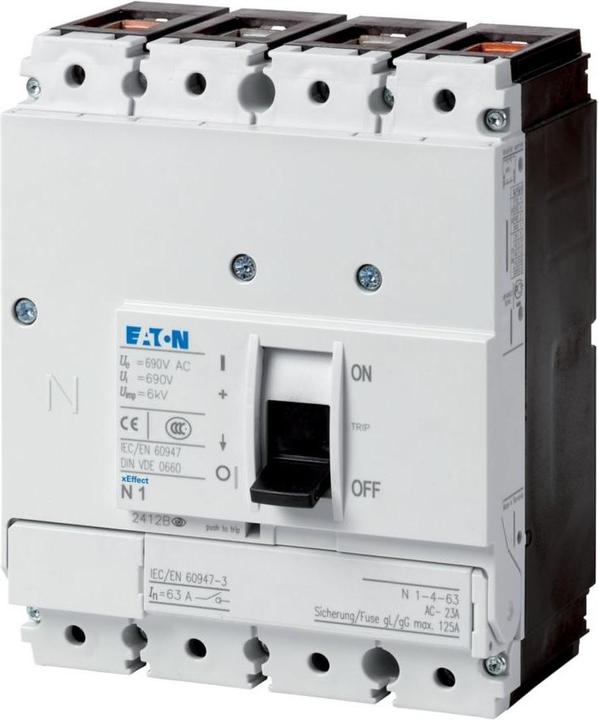

Eaton switch-disconnector N1-4-63
Manufacturer: Eaton
Designation: Switch-disconnector 4p, 63A
Type: N1-4-63
Version as main switch: Yes
Version as maintenance/repair switch: Yes
Version as safety switch: No
Version as emergency stop device: Yes
Version as reversing switch: No
Number of switches: 1
Max. rated operational voltage Ue at AC: 690 V
Rated operational voltage Ue at AC: 690 V
Rated operational voltage: 690 V
Rated continuous current Iu: 63 A
Rated continuous current at AC-23, 400 V: 0 A
Rated continuous current at AC-21, 400 V: 0 A
Rated operational power at AC-3, 400 V: 0 kW
Rated short-time withstand current Icw: 2 kA
Rated operational power at AC-23, 400 V: 30 kW
Switching capacity at 400 V: 0 kW
Conditional rated short-circuit current Iq: 0 kA
Number of poles: 4
Motor drive optional: No
Motor drive integrated: No
Voltage release optional: Yes
Type of device: Built-in device fixed installation technology
Suitable for floor mounting: Yes
Suitable for front mounting 4-hole: No
Suitable for front mounting central: No
Suitable for distributor installation: Yes
Suitable for intermediate: Yes
Colour of actuating element: Black
Design of actuating element: Toggle lever
Lockable: Yes
Type of connection main circuit: Frame terminal
Protection class (IP), front: IP20

Eaton switch-disconnector N1-4-63: Further details include isolating characteristics suitable for earthed IT systems. Accessories such as bridge kits, connection terminals, and door coupling rotary handles allow for individual installation in various distribution systems. Auxiliary switches, voltage releases, and remote drives enable signaling and automation. Notes: Main switch characteristics include positive break according to IEC/EN 60204 and VDE 0113, isolator characteristics according to IEC/EN 60947-3 and VDE 0660, and contact protection according to VDE 0160 part 100.
EAN: 4015082660024.
