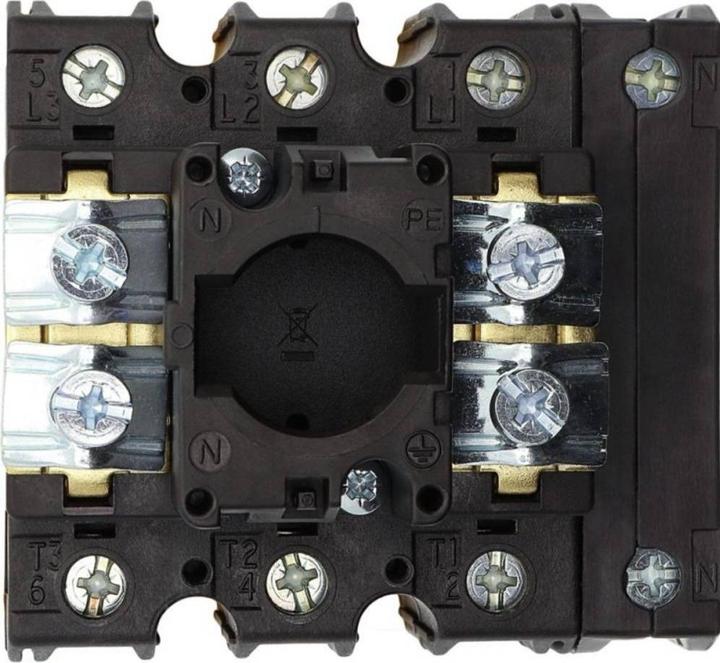

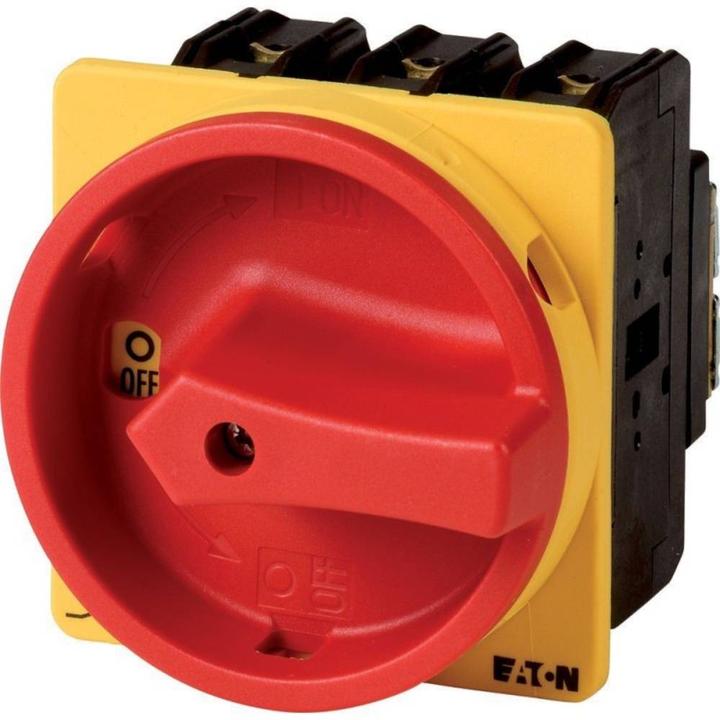

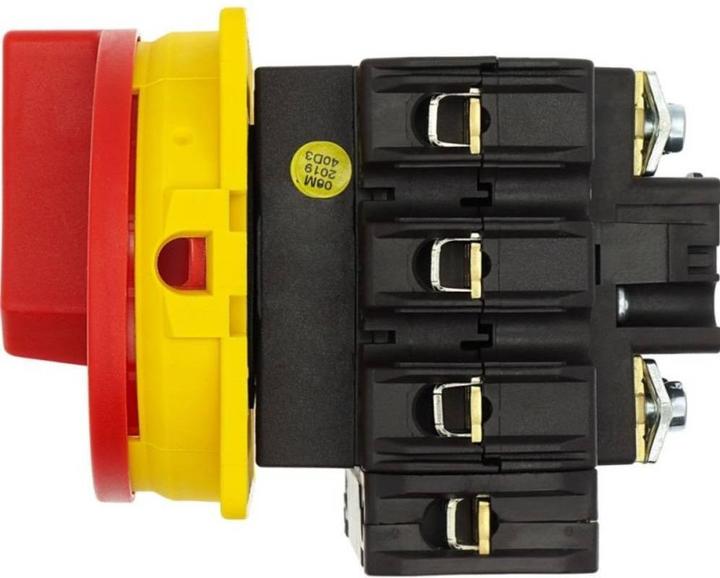

Eaton Cam switch P3-63/EA/SVB/N

Ratings
BrandMore from Eaton
Delivered between Mon, 18.5. and Tue, 19.5.
Only 4 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

The Eaton P3-63/EA/SVB/N is a highly advanced cam switch designed for the safe and reliable control of electrical systems. With a maximum rated voltage of 690 V and a rated current of 63 A, this main switch is ideal for use in industrial applications. The IP65 protection class ensures that the device is protected against dust and water, making it suitable for use in demanding environments. The switch is designed as a 3-pole and neutral (3P+N) and offers a robust construction for panel mounting. The option for front mounting and the lockable feature in the 0 position enhance safety and user-friendliness. The Eaton P3-63/EA/SVB/N is not only a maintenance and repair switch but also a reliable solution for emergency shutdown, making it a valuable component in any electrical system.

  • 3-pole cam switch with neutral (3P+N)
  • Maximum rated voltage of 690 V
  • IP65 protection class for dust and water resistance
  • Lockable in the 0 position for increased safety
  • Suitable for panel mounting with front attachment.

Key specifications

Nominal current
63 A
Nominal voltage
690 V
Number of outlets
1x
Protection type (IP code)
IP65

General information

Item number
20450828
Manufacturer
Eaton
Category
Mobile power distributors
Manufacturer No.
010398
Release date
1.5.2021
External links
Manufacturer's site (de)

Colour

Colour
Red, Yellow
Exact colour description
Red, Yellow

Mobile power distributor features

Nominal current
63 A
Nominal voltage
690 V
Number of outlets
1x
Area of use
Inside
mounting type
Recessed mounting
Number of poles
3x
Contact Configuration
1 Number of contacts as NO contacts: 1 Number of contacts as NC contacts: 1 Number of contacts as changeover contacts: 0
Actuator Type
Rotary drive
Power
30000 W
Input voltage
690 V
Protection type (IP code)
IP65

Origin

Country of origin
Germany, United Kingdom

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
15.72 kg
Climate contribution
CHF 0.37

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
3-pole + N, 50 - 60 Hz 400 V: P = 30 kW, Auxiliary switch contact can be retrofitted., CSA, Design: Built-in, IEC/EN 60204, Lockability: lockable in 0-position, NEMA12, Protection class: Front IP65, Rated continuous current: Iu = 63 A, Rated operating power AC-23A, Standards and regulations: IEC/EN 60947, Switch-disconnector according to IEC/EN 60947-3, UL, VDE 0660

Product dimensions

Width
90 mm
Length
148 mm
Height
94 mm
