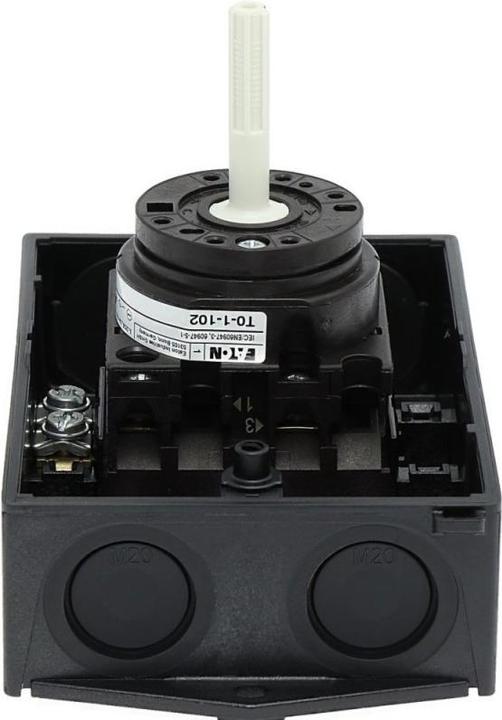

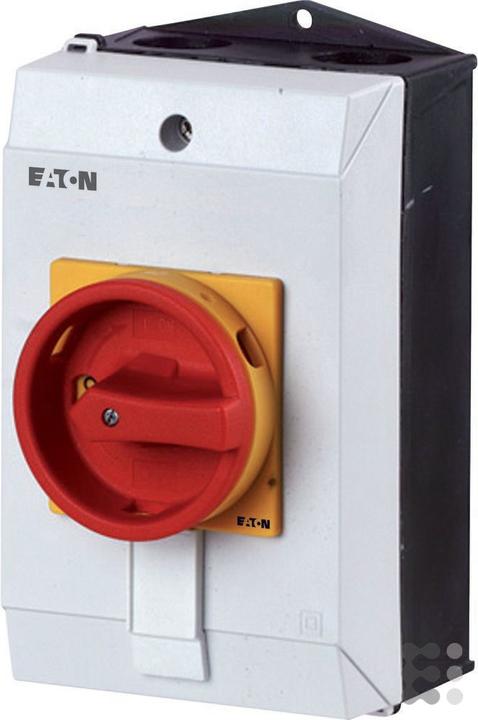

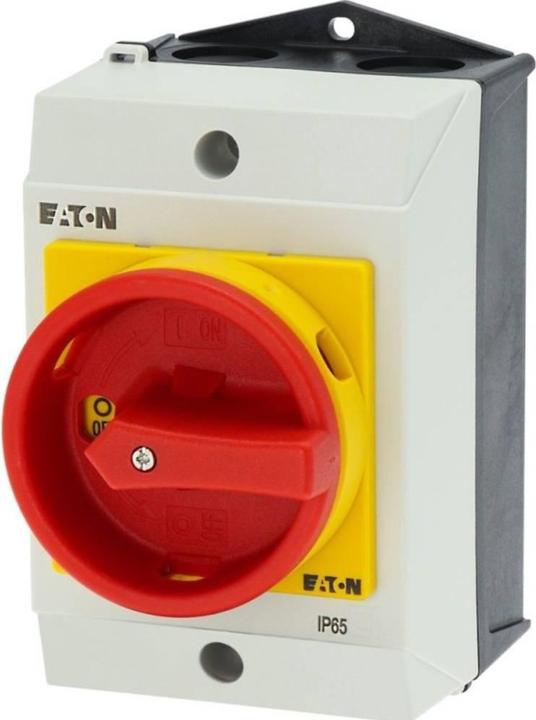

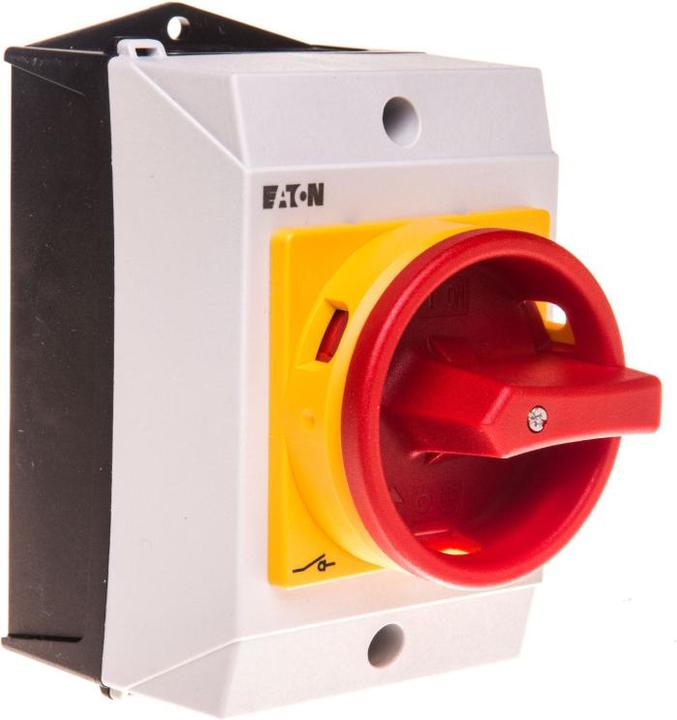

Eaton Cam switch 2 pole

Ratings
BrandMore from Eaton
Delivered between Tue, 19.5. and Wed, 20.5.
5 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

Number of poles: 2
Max. current: 20 A
Mounting type: Closed
Contact configuration: NO
Power: 6.5 kW
Protection class: IP65
Padlock option: Yes
Operating voltage: 440 V AC
Auxiliary contacts available: Yes
Electrical phases: 1
Switching capacity: 320 A
Length: 137 mm
Width: 80 mm
Depth: 75 mm
Handle color: Red

UL and CSA. IEC (EN60) 947 and IEC (EN60) 204, the switching capacity refers to AC23A at 380-440 V. Insulated, encapsulated, lockable circuit breaker. Housing made of thermoplastic material with high impact resistance according to IP65. Built-in earth distribution block. Lockable in the OFF position, with up to three locks.

Key specifications

Nominal current
20 A
Nominal voltage
690 V
Protection type (IP code)
IP65

General information

Item number
9725862
Manufacturer
Eaton
Category
Mobile power distributors
Manufacturer No.
T0-1-102/I1/SVB
Release date
24.9.2018

Colour

Colour
Red, Yellow
Exact colour description
Red, Yellow

Mobile power distributor features

Nominal current
20 A
Nominal voltage
690 V
Number of poles
2x
Contact Configuration
Normally open
Actuator Type
Door coupling rotary drive
Power
5500 W
Protection type (IP code)
IP65

Origin

Country of origin
Germany, United Kingdom

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
15.72 kg
Climate contribution
CHF 0.37

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Width
80 mm
Length
110 mm
Height
137 mm
