Product details

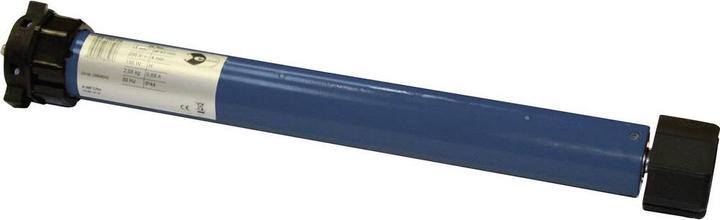

The E-Ast ER1060-50 tubular motor is a powerful and quietly operating roller shutter motor designed for a variety of applications in drive technology. With a maximum pulling force of 113 kilograms and a power output of 205 watts, this motor provides a reliable and efficient solution for automating roller shutters. The motor operates at a nominal voltage of 230 volts and has an output speed of 12 revolutions per minute, allowing for precise control. Installation is straightforward and uncomplicated, supported by a detailed user manual and the necessary accessories. The E-Ast ER1060-50 is ideal for use in residential and commercial properties where a combination of power and low noise is required.
- Maximum pulling force of 113 kg for heavy roller shutters
- Powerful motor with 205 W and 50 Nm torque
- Easy installation with included accessories
- Quiet operation for a pleasant user experience.
Electric motor type | Roller shutter motor |
rated current | 0.98 A |
Rated voltage | 230 V |
Item number | 8804061 |
Manufacturer | E-Ast |
Category | Electric motors |
Manufacturer no. | ER1060-50 |
Release date | 27.5.2018 |
External links |
Electric motor type | Roller shutter motor |
rated current | 0.98 A |
Rated voltage | 230 V |
voltage type | AC |
Protection type (IP code) | IP44 |
Power | 0.21 kW |
Max. Speed | 12 RPM |
moment of force | 50 Nm |
Power supply | Electrical connection |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Actuator bearing, Adjustment tool, Driver for end position ring, Driver for winding roller, Installation and operating instructions, Locking clip, Roller shutter motor, Spring cotter pin |
Length | 52.20 cm |
Width | 4.50 cm |
Length | 60 cm |
Width | 8 cm |
Height | 8 cm |
Weight | 2.93 kg |
Specifications may include unverified machine translations.
