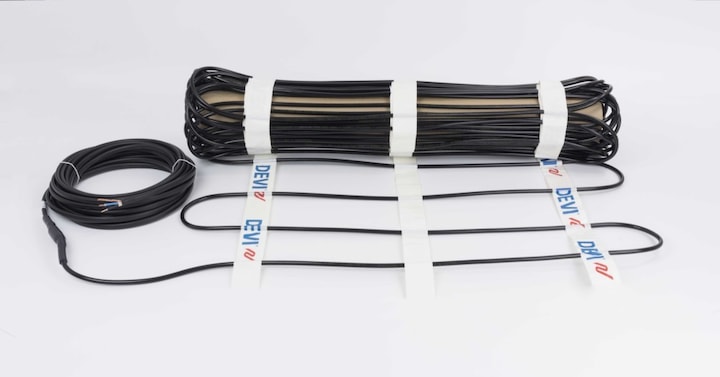

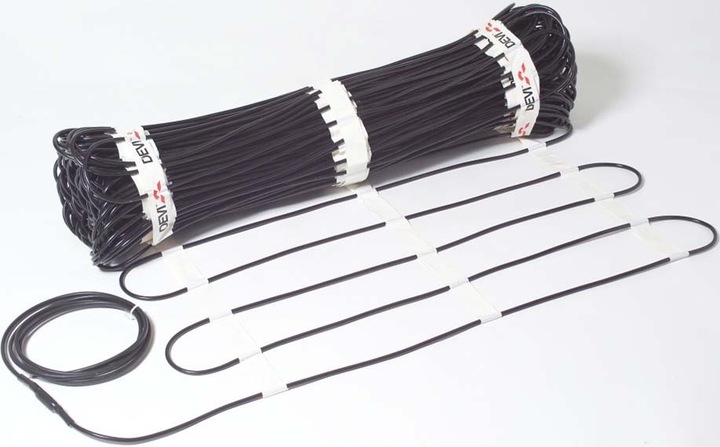

Devi Heating mat

Danfoss Heating Mat DTCE-300 4250W

Manufacturer: Danfoss
Designation: Heating Mat 400V
Type: DTCE-300 4250W
With Carrier Mat: No
Heating Cable Fixation: Glued
Self-Adhesive: No
Connection Power: 4250 W
Power: 300 W/m²
Heating Cable Load: 30 W/m
Number of Cold Leads: 1
Length of Cold Lead: 10000 mm
Suitable for Wet Rooms: Yes
Suitable as Outdoor Heating: Yes
Suitable as Roof Heating: No
Area: 14.8 m²
Length: 14800 mm
Width: 1000 mm
Thickness: 7 mm
With Controller: No
With Room Thermostat: No
With Floor Temperature Sensor: No

Danfoss Heating Mat DTCE-300 4250W: Additional Details
Ready-to-install heating mat with a connection cable suitable for installation in reinforced concrete, screed, or sand bed. Comes with additional protective sheathing for use with RCD protection. This heating mat system is particularly suitable for installation in angled and/or large areas, as the return of the second connection is not required. Includes factory-mounted waterproof connectors and a 10 m long cold lead, to be installed according to the installation instructions. Measurement of insulation and total resistance. Heating cable according to IEC 60800, Voltage: 400 V, Rated Limit Temperature: 80°C, Specific Heating Power: 300 W/m², Resistance Tolerance: +10% / -5%, Minimum Installation Temperature: 5°C, Minimum Bending Radius: 5 x dA, Protection Class: IP X7, Area 14.8 m², 4250 W.
