Dehn ÜS arrester

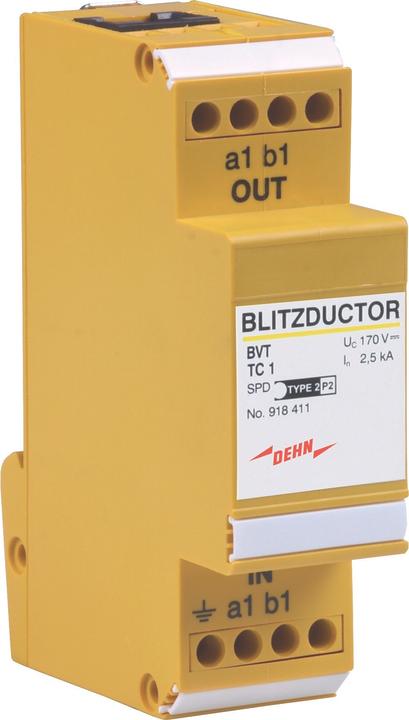

DEHN surge arrester Blitzductor VT BVT TC 1

Manufacturer: DEHN
Designation: Surge arrester Blitzductor VT
Type: BVT TC 1
Rated voltage DC: 130 V
Maximum continuous voltage DC: 170 V
Rated discharge current (8/20): 5 kA
Surge current (10/350 µs): 1 kA
Rated load current: 0.2 A
Protection level core/core: 240 V
Protection level core/earth: 600 V
Cut-off frequency: 17 MHz
Mounting type: top-hat rail TH35
Connection 1: terminal/RJ45
Explosion-proof version: no

Energetically coordinated leakage current-free surge arrester for a/b wire, ISDN Uk0 or ADSL with RJ45 connections and additional screw terminal connections. The pinning of the RJ45 jacks is RJ11/12 compatible. The parallel screw terminals are more robust than the RJ45 jacks and increase the total rated leakage current to 10 kA.
