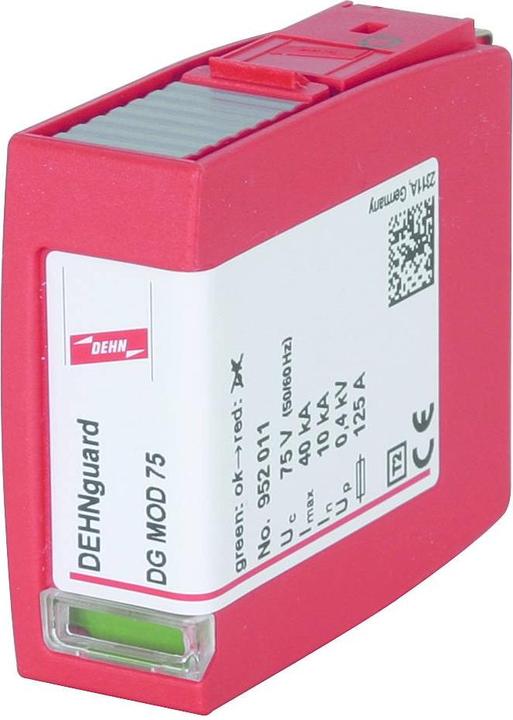

Dehn Surge arrester type 2 Varistor- 952011
Delivered between Wed, 4.3. and Thu, 19.3.
free shipping
Nominal voltage5
Product details
Dehn surge arrester TYP2 DG MOD 75
Manufacturer: Dehn
Designation: Surge arrester TYP2
Varistor Type: DG MOD 75
Rated leakage current (8/20): 10 kA
Max. leakage current (8/20): 40 kA
Leakage current (8/20): 40 kA
Rated voltage AC: 60 V
Max. continuous voltage AC: 75 V
Max. continuous voltage DC: 100 V
Protection level: 0.4 kV
Max. overcurrent protective device: 125 A
Mounting type: On base element
Size: 1 TE
Signalling on device: Optical
Test class type 2: Yes
Dehn surge arrester TYP2 DG MOD 75: Further details
Protection module for Dehnguard modular, type 2 according to EN 61643-11.
EAN: 4013364109773.
Test class | Type 2 |
Surge protection type | Surge arrester |
Item number | 33785416 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 952011 |
Release date | 17.5.2023 |
Material | Varistor |
Surge protection type | Surge arrester |
Lightning impulse current | 40 kA |
Rated leakage surge current | 10 kA |
Nominal voltage | 60 V |
Protection level | 400 V |
Test class | Type 2 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
