Product details

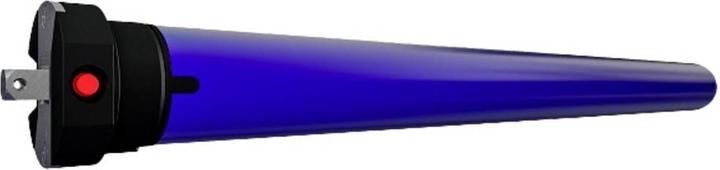

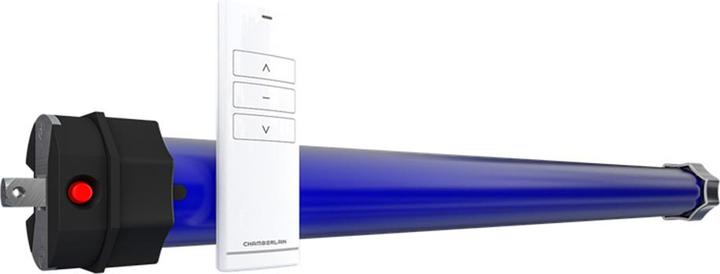

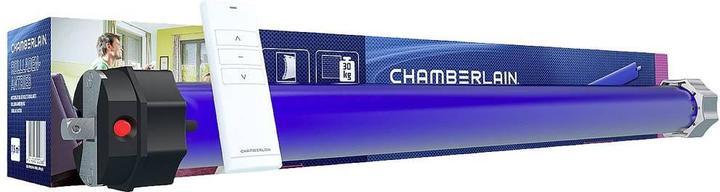

Radio-controlled roller shutter drive with a pulling force of 15 Nm, suitable for roller shutters weighing up to 30 kg. Open and close roller shutters conveniently via radio – with the Chamberlain roller shutter drive RPD15ER-10, including a 1-channel remote control. All roller shutters with an area of up to 7.5 m² (PVC) can be opened at a maximum weight of 30 kg. The endpoints are easily set using the included 1-channel remote control. Obstacles in the path are automatically detected. Thanks to its design, the motor head and cable can be rolled over, allowing the roller shutter drive to be used in tight spaces. For a relaxed installation of the Chamberlain tubular motor, all essential components are already pre-assembled. Roller shutter accessories such as wall transmitters or sun sensors are available separately.
Simple: Uncomplicated and quick installation.
Safe: Makes it difficult to open the roller shutter from the outside.
Comfortable: No manual operation of the roller shutter required.
Efficient: Reduces the formation of thermal bridges.
Economical: Lower heat loss saves heating costs.
Electric motor type | Roller shutter motor |
rated current | 0.78 A |
Rated voltage | 230 V |
Rated frequency | 50 Hz |
Weight | 2.30 kg |
Item number | 24188500 |
Manufacturer | Chamberlain |
Category | Electric motors |
Manufacturer no. | RPD15ER-10 |
Release date | 24.10.2022 |
External links |
Colour | Blue |
Exact colour description | Blue |
Electric motor type | Roller shutter motor |
rated current | 0.78 A |
Rated voltage | 230 V |
Rated frequency | 50 Hz |
voltage type | AC |
Power | 0.18 kW |
Max. Speed | 17 RPM |
moment of force | 15 Nm |
Power supply | Electrical connection |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Connection cable 1.8 m., Incl. 1 hand-held transmitter 1-channel |
Length | 180 cm |
Width | 4.50 cm |
Weight | 2.30 kg |
