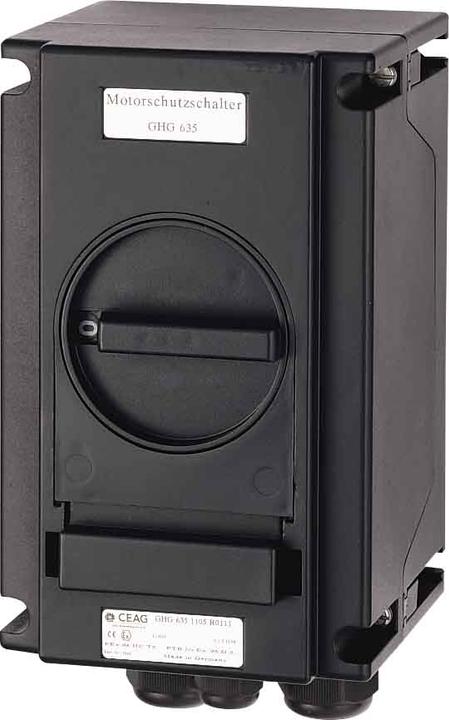

Ceag Motor starter,1.6-2.5A FLC range

Motor starter type: Direct starter
Operating voltage: 690 V AC
Protection class: IP66
Motor starter mode of operation: Manual
Total length: 225 mm
Housing: Yes
Total width: 140 mm
Total depth: 156 mm
Hazardous area approval: ATEX II 2 G EEx de II C T S or T6. PTB 99 ATEX 1162.

Short-circuit protection up to 100 kA and maximum back-up can be found in the key characteristics table. This motor starter features single-phase failure protection via thermal electromagnetic trips. The respective switch position is clearly indicated by the switch handle. Terminals are protected against accidental contact and accommodate a terminal cross-section of up to 10 mm² for the connection of single or multi-wire conductors. The external contours of the enclosure allow easy access to the connection terminals and facilitate installation. Connection terminals are accessible from all sides. The product has an IP66 rating according to EN60529 and isolating properties to DIN EN 60947-3, with a rating of 690 VAC up to 25 A. It includes a padlocking facility via a red button and provides a clear indication of the switch position. Dimensions are 268 mm x 140 mm x 150 mm (H/W/D).
