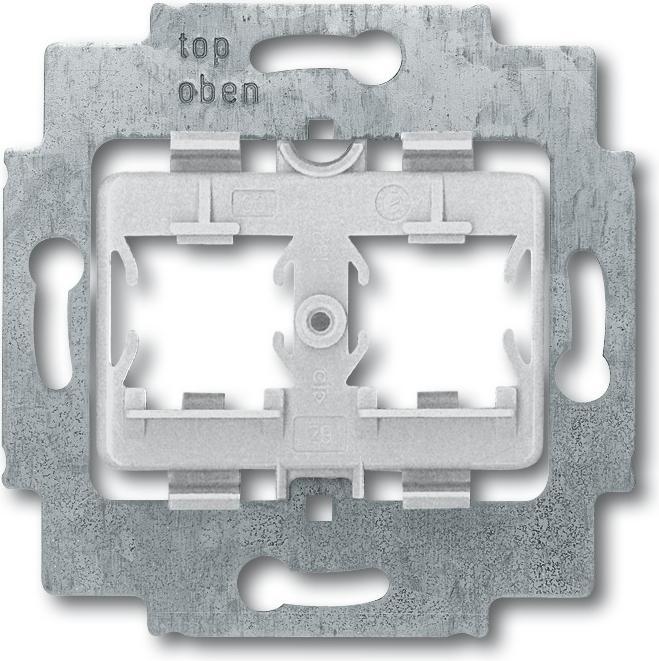

Busch-Jaeger Support ring

Busch-Jaeger support ring 1820
Manufacturer: Busch-Jaeger
Designation: Support ring gray base
Type: 1820
Composition: Basic element
Usage: Modular-Jack
Support ring: Yes
With dust protection: No
With hinged cover: No
Outlet direction: Straight
Labeling field: Without labeling field
With imprint: No
Mounting type: Flush-mounted
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Finish: Matt
Color: Gray
Transparent: No
Mounting type: Fastening with screw
Number of modules (for modular design): 1
With sockets/couplings: No
Suitable for number of sockets/couplings: 2
With strain relief: No
Sockets shielded: No
Housing shielded: No
Luster terminal: No
Suitable for protection class (IP): IP20
Device width: 71 mm
Device height: 71 mm
Device depth: 32 mm
Min. depth of device box: 40 mm

Busch-Jaeger support ring 1820: further details
For 2 modular jack inserts. For system: Panduit MiniCom (e.g., TX6 10 Gig Shielded Jack modules and 1-way modules for fiber optics and media technology). Snap-in dimension: (WxH) approximately 15.9 mm x 18.7 mm. Without spreader. Check compatibility with other, not listed manufacturers according to specified latching dimensions. Further information can be found in the "Communication Systems" manual.
EAN: 4011395132340.
