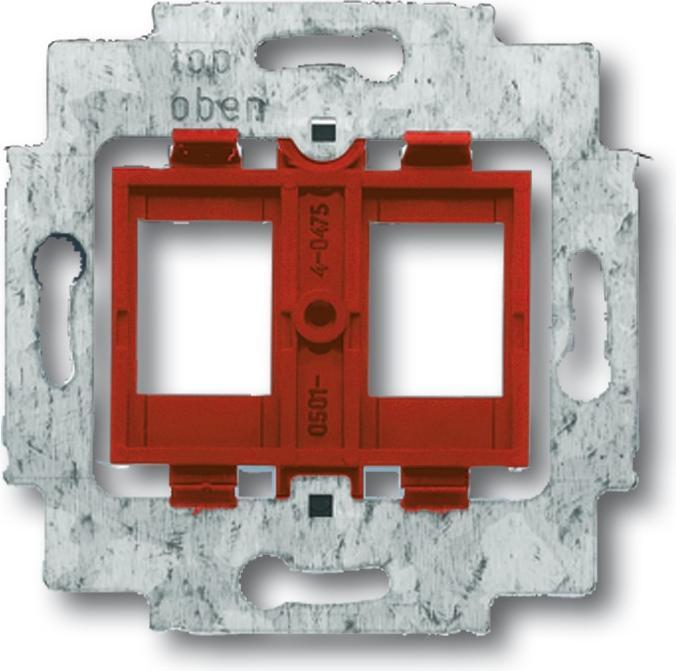

Busch-Jaeger Support ring

Busch-Jaeger support element for modular socket 1812

Manufacturer: Busch-Jaeger
Designation: Support element for modular socket
Base type: 1812
Composition: Base element
Usage: Modular socket
Support element: Yes
With dust protection: No
With flip cover: No
Outlet direction: Straight
Labeling field: Without labeling field
With pressure: No
Mounting type: Flush mounting
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface: Matte
Color: Red
Transparent: No
Mounting type: Screw fastening
Number of modules (for modular construction): 1
With sockets/couplings: No
Suitable for number of sockets/couplings: 2
With strain relief: No
Sockets shielded: No
Housing shielded: No
Terminal block: No
Suitable for protection class (IP): IP20
Device width: 71 mm
Device height: 71 mm
Device depth: 32 mm
Min. device box depth: 40 mm

Further details:
For 2 modular socket inserts. Suitable for part numbers 0210, 0211, and 0219-101.
Compatible with systems: AMP / Tyco Electronics, Assmann, BTR, EFB, Krone, Panduit, Quante, Radiall, Setec, Dr.-Ing. Sieger, Telena, Thomas & Betts.
For Telegärtner AMJ / UMJ connection modules / couplings.
For 2 fiber optic modules from the system: 3M-Volition, Krone, mvk.

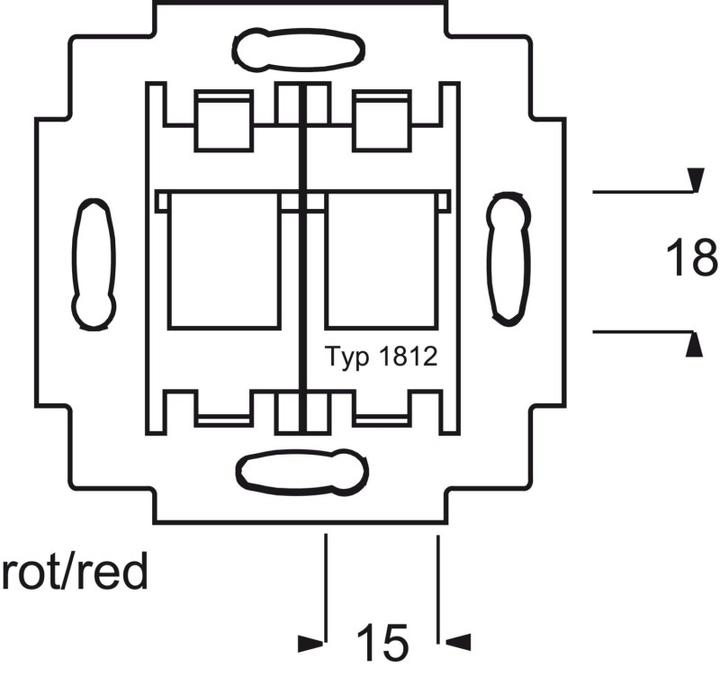

Snap-in dimensions: (WxH) approx. 14.8 x 19.4 mm.
Without spacer. Check compatibility with other unlisted manufacturers according to the specified snap dimensions.
For more information, please refer to the "Communication Systems" manual.
EAN: 4011395743805.
