Busch-Jaeger Motion detector

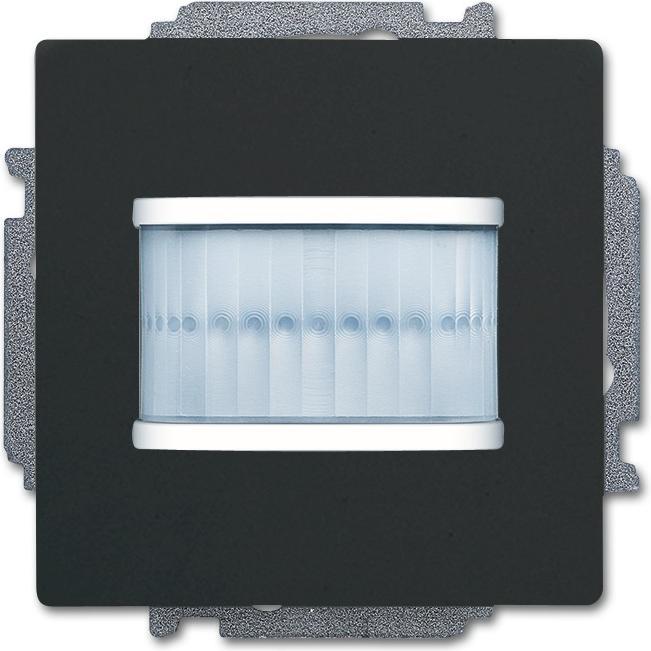

Busch-Jaeger Motion Detector 6225/1.0-885

Manufacturer: Busch-Jaeger
Description: Motion detector in matte black
Type: 6225/1.0-885
KNX Bus System: no
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: other
Bidirectional Radio: yes
Design: Motion detector
Mounting Type: Flush-mounted
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: painted
Surface Finish: matte
Color: black
RAL Number (similar): 9005
Transparent: no
With Bus Coupling: no
Secondary Input: no
Creeping Protection/Return Field Monitoring: no
Animal Channel: yes
Staircase Monitoring: yes
Adjustable Response Brightness: yes
Teach Function for Response Brightness: no
Self-learning Switch-off Delay: no
Optimal Mounting Height: 1.1 m
Max. Range to One Side: 3 m
Max. Frontal Range: 6 m
Vertical Detection Angle: 19 °
Horizontal Detection Angle: 180 °
Number of Channels: 1
Width: 71 mm
Height: 71 mm
Depth: 30 mm
Installation Depth: 8.5 mm
Min. Depth of Device Box: 8.5 mm

Busch-Jaeger Motion Detector 6225/1.0-885: additional details
Motion detector for Busch-free@home®. With Select lens for detection with animal channel. For automatic switching of Busch-free@home® actuators based on movement and brightness. The actuator's follow-up time can be programmed via the web interface of the System Access Point. The bus connection is made via the included bus terminal. Programming is only possible with bus voltage applied through the web interface of the System Access Point. Further information on commissioning and operation can be found in the system manual and the online user manual.
EAN: 4011395203439.
