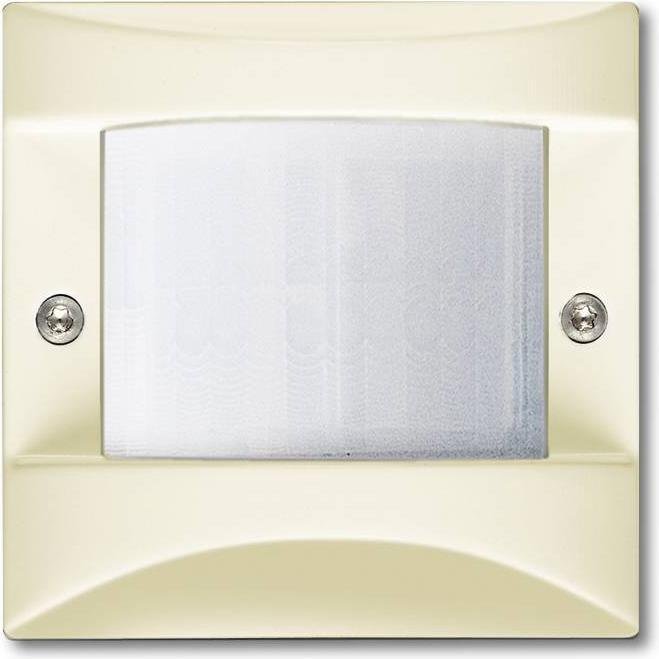

Busch-Jaeger 6800-0-1898 Wired Wall White Motion Detector (6800-0-1898)

15 m
Ratings
Delivered between Tue, 3.6. and Mon, 9.6.
More than 10 items in stock at third-party supplier
Supplied by
JACOB DE

Product details

For automatic switching of loads depending on movement and brightness. Suitable for outdoor use with detection down to the ground. Designed for Busch-Universal relay insert 6401 U-102. IP 44 rating only in conjunction with Allwetter 44® frame. Monitoring density includes 40 sectors with 160 switching segments. The switch-off delay is adjustable from 10 seconds to 30 minutes or can be set to a short time pulse of 1 second. Features screw fixing.

Main features:

  • Security Type: Wired
  • Distance detection: 15 m

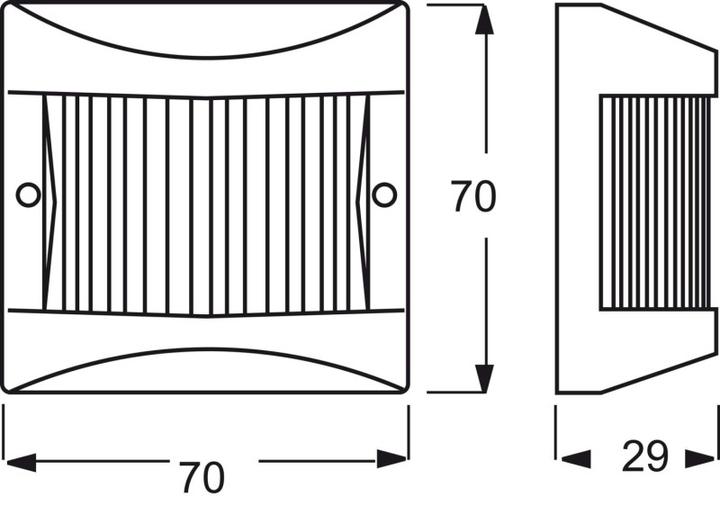

  • Weight & dimensions: Width 70 mm, Depth 29 mm, Height 70 mm
  • Operating conditions: Temperature range in operation 25 - 55 °C
  • Technical details: Mounting type: Wall, Placement: Indoor, outdoor
  • Protection class (IP code): IP44
  • Light sensitivity: 5 Lux
  • Installation height (min): 0.8 m
  • Installation height (max): 2.5 m
  • Detection angle: 180°
  • Waterproof: Yes

Packaging information:

  • Operating instructions: Yes
  • Certificates: CE, ROHS
  • Product color: White.

Key specifications

type of sensor
PIR
mounting style
Face
Motion sensor type
Motion sensor
Exact colour description
White
coverage angles
180°
Range
15 m
Item number
14173793

General information

Manufacturer
Busch-Jaeger
Category
Motion sensors
Manufacturer no.
2CKA006800A1898
Release date
11.11.2020

Colour

Colour
White
Exact colour description
White

Material

Material group
Plastic
Material
Plastic

Motion sensor properties

Motion sensor type
Motion sensor
Application range
Indoor, Outdoor
type of sensor
PIR
coverage angles
180°
Range
15 m
Protection type (IP code)
IP44
mounting style
Face

Smart home features

Smart Home
Not compatible
Requires Smart Home Hub
No

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
Scope of delivery
Busch-Jaeger monitor ws 6800-32-102C

Product dimensions

Length
2.90 cm
Width
7 cm
Height
7 cm
Weight
110 g

Package dimensions

Length
10 cm
Width
8 cm
Height
6 cm
Weight
20 g
