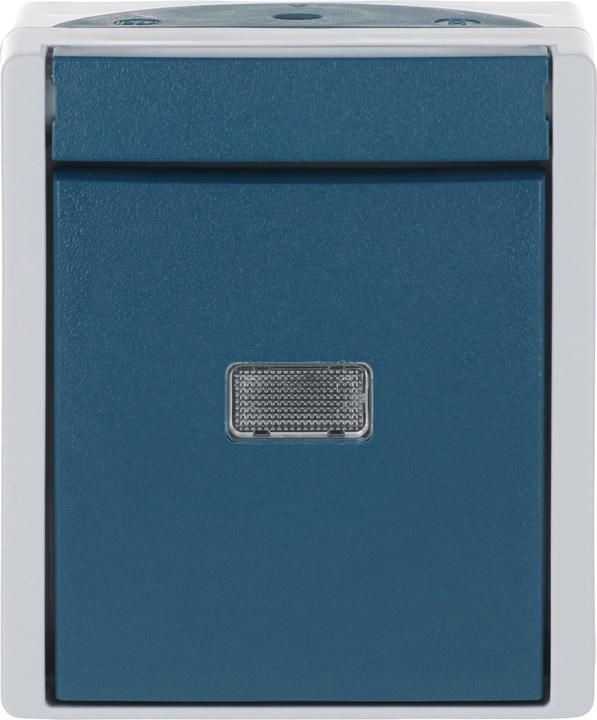

Busch-Jaeger Button

Busch-Jaeger Push Button aws 2621 W-54-206

Manufacturer: Busch-Jaeger
Designation: Push Button aws
Type: 2621 W-54-206
Assembly: Basic element with complete housing
Design: Single push button
Operation type: Push button
Number of contacts as normally open: 1
Number of contacts as normally closed: 1
Number of contacts as changeover: 1
Contactless design: no
Number of actuator buttons: 1
Number of modules (in modular construction): 1
Number of poles: 1
Rated voltage: 250 V
Rated current: 10 A
With lighting: yes
With light source: yes
With signal lamp: no
Feedback contact: no
Mounting type: Surface-mounted
Fastening type: Screw fastening
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: matte
Color: Alpine white
RAL number (similar): 9010
Transparent: no
Text field/Labeling area: yes
Printing: none
Suitable for protection class (IP): IP44
Device width: 74 mm
Device height: 83 mm
Device depth: 55 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

Busch-Jaeger Push Button aws 2621 W-54-206: additional details
With neutral (transparent) dome. Single pole, with N terminal. Usable as normally open (rest current) or normally closed (working current). Can be labeled with labeling carrier 1763-53. Labeling carrier can be illuminated with lighting insert 2152 NLI-53. Switch can be illuminated by inserting lamp 8332-1, 8335-1, 8346-1, 8333-1, and 8358.
EAN: 4011395079539.
