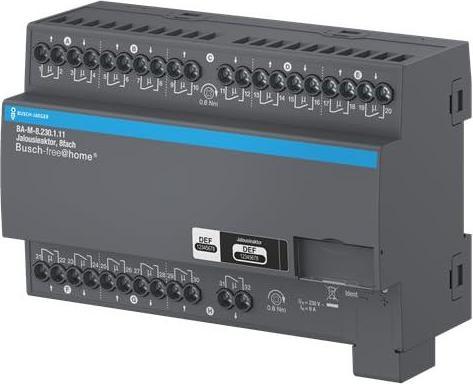

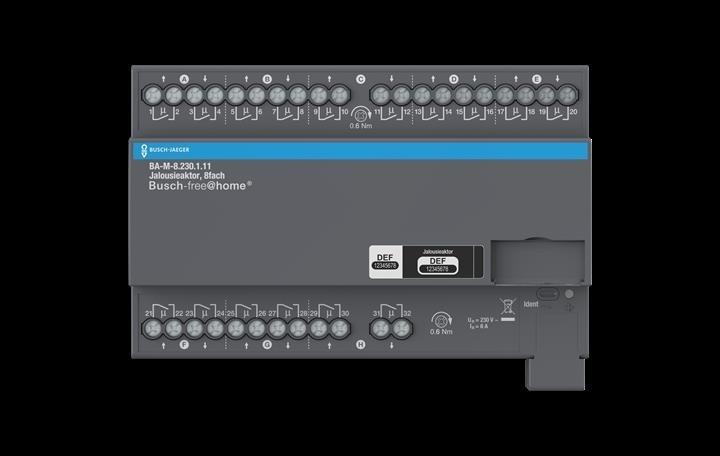

Busch-Jaeger BA-M-8.230.1.11
Shutter actuatorMore than 10 pieces in stock at supplier
Product details
The Busch-Jaeger Jalousieaktor BA-M-8.230.1.11 is a state-of-the-art solution for controlling electric 230V drives in your smart home. With eight potential-free contacts, this shutter actuator allows for flexible and efficient control of blinds and shutters. It is specifically designed for the Busch-free@home® system and offers a maximum switching capacity of 1200 watts. Installation is done in a flush-mounted box with a minimum depth of 63.5 mm. The shutter actuator is equipped with an LED display that clearly indicates the operating status. Thanks to its IP20 protection rating, it is suitable for use in dry indoor environments. This actuator is an ideal choice for anyone looking for a reliable and user-friendly solution to automate their window coverings.
- 8 potential-free contacts for flexible control
- Maximum switching capacity of 1200 watts
- LED display for easy status check
- Compatible with Busch-free@home® system.
Actuator type | Shutter actuator |
Operating voltage | 230 V |
Smart Home Protocol | KNX |
communicating | Cable |
Items per sales unit | 1x |
Item number | 37919827 |
Manufacturer | Busch-Jaeger |
Category | Actuator |
Manufacturer No. | 2CDG510029R0021 |
Release date | 7.9.2023 |
External links |
Colour | Grey |
Material group | Plastic |
Actuator type | Shutter actuator |
Max. Switching capacity | 1200 W |
Operating voltage | 230 V |
Number of switching outputs | 8x |
Protection type (IP code) | IP20 |
Smart home | Compatible |
Smart Home Protocol | KNX |
communicating | Cable |
Requires Smart Home Hub | No |
Country of origin | China |
CO₂ emissions | 39.74 kg |
Climate contribution | CHF 0.94 |
Items per sales unit | 1x |
Width | 80 mm |
Length | 18.50 cm |
Width | 12.10 cm |
Height | 9.50 cm |
Weight | 600 g |
