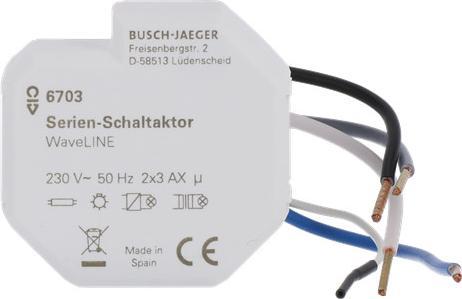

Busch-Jaeger Actuator

Busch-Jaeger Actor 2-fold 6703

Manufacturer: Busch-Jaeger
Designation: 2-fold actor white
Type: 6703
Suitable for dimmers: no
Suitable for push buttons: yes
Suitable for roller shutter switches: no
Suitable for venetian blind switches: no
Suitable for venetian blind/roller shutter switches: no
Suitable for switches: yes
In housing: yes
In tube socket housing: no
As module/board: no
Power supply: 230 V AC
Push operation: yes
Switch operation: yes
With remote control: no
With remote coding device: no
With remote button: no
Number of relays: 2
Mounting type: flush-mounted
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: matte
Mounting type: clamp mounting
Color: white
RAL number (similar): 9016
Transparent: no
Suitable for protection class (IP): IP20
Radio frequency: 868 MHz
Modulation: FM
Rolling code system: no
Code length (bits): 8
Number of commands: 3
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

Busch-Jaeger Actor 2-fold 6703: additional details
Series switching actuator WaveLINE for switching electrical loads via radio. For operation as series switch, 2 separate outputs. For operation as timer switch: output 1 (e.g., lighting), output 2: on/off delayed depending on output 1 (e.g., fan control). For functions: ON/OFF and light scene control. For wall transmitters Waveline 6731-xxx, 6732-xxx, and 6733-xxx. For remote control WaveLINE 6780. On/off delay output 2: 2 min. / 5 min. Repeater function for range extension can be activated. For universal installation or mounting. 3-wire connection technology (neutral wire required). For installation in (deep) flush-mounted boxes according to DIN 49073. Can be controlled via up to 32 transmitter addresses. Send/receive frequency: 868 MHz. Range: approx. 100 m (open field).
EAN: 4011395150122.
