Bernstein Limit switch

Ratings
BrandMore from Bernstein
Delivered between Wed, 27.8. and Fri, 12.9.

Product details

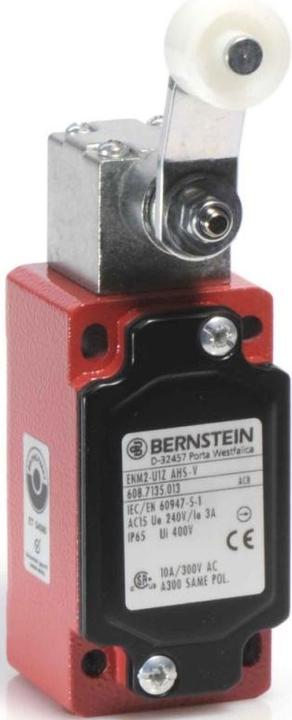

Bernstein Limit Switch GCSU1ZHIW#6021370629

Manufacturer: Bernstein
Designation: Limit Switch
Type: GCSU1ZHIW#6021370629
Sensor Width: 36 mm
Sensor Height: 32.5 mm
Sensor Length: 95.5 mm
Rated Operating Current Ie at AC-15, 230 V: 3 A
Switching Function: Snap Action
Latching Switching Function: No
Electronic Output: No
Forced Opening: Yes
Number of Safety-Related Auxiliary Contacts: 1
Number of Contacts as Normally Open: 1
Number of Contacts as Normally Closed: 1
Interface Design: None
Interface Design for Safety-Related Communication: None
Housing Design: Rectangular
Housing Material: Metal
Housing Coating: Powder Coated
Actuator Element Design: Roller Lever
Actuator Element Orientation: Other
Electrical Connection Design: Cable Entry (Metric)
With Status Indicator: No
Suitable for Safety Functions: Yes
Explosion Protection Category for Gas: None
Explosion Protection Category for Dust: None
Operating Temperature Range: -30 to 80 °C
Protection Class (IP): IP65

The metal-encapsulated limit switch is suitable for almost any application in the field of safety applications and position detection due to its compact design. The switch offers various mounting advantages: e.g., screw connections with self-lifting clamping washers, captive cover screws, and a switching system that can be easily replaced through a latching mechanism. Optional versions with custom cables and connectors are also available.
EAN: 4024337005114.

Key specifications

Nominal current
3 A
Number of outlets
1 x
Protection type (IP code)
IP65
Item number
34354021

General information

Manufacturer
Bernstein
Category
Mobile power distributors
Manufacturer no.
6021370629
Release date
17.5.2023

Material

Material group
Metal
Material
Metal

Mobile power distributor features

Nominal current
3 A
Number of outlets
1 x
Area of use
Inside
Number of poles
1 x
Contact Configuration
1 Number of contacts as NO contacts: 1 Number of contacts as NC contacts: 1
Actuator Type
Roller lever
Protection type (IP code)
IP65

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
Grenztaster GCSU1ZHIW#6021370629

Product dimensions

Width
36 mm
Length
95.50 mm
Height
32.50 mm
