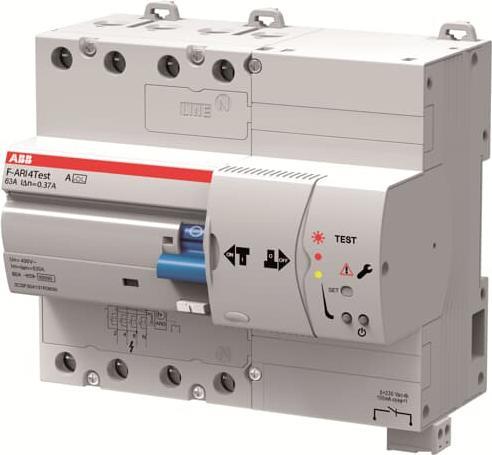

ABB F-ARI4Test A-63/0.03

Ratings
BrandMore from ABB
Delivered between Fri, 10.7. and Fri, 24.7.
free shipping

Rated current3

Product details

F-ATI and F-ARI are RCCBs with an automatic non-disruptive testing function. RCCBs should be tested at least every six months, depending on the application. This ensures that the contacts function properly and that the device trips in the event of a fault current to ground. Regular testing of RCCBs affects the uninterrupted operation of the downstream circuits and involves significant labor. With the use of F-ATI and F-ARI, this labor is eliminated. These devices perform the regular tests automatically and without interrupting the system. Therefore, the involvement of maintenance personnel can be minimized.

In addition to the automatic tests, the F-ARI series is equipped with an automatic reset unit to close the RCCB after it has tripped. This feature is specifically designed for areas where only electrically trained personnel or electrical specialists have access. The reset is based on an insulation test to ensure that it is not a permanent fault.

Furthermore, the results of all circuits are collected via the ARBus interface.

Key specifications

Circuit breaker type
Fault current circuit breaker
Mounting type
Top-hat rail
number of poles
4
Length
80 mm
Width
125 mm

General information

Item number
31991205
Manufacturer
ABB
Category
Residual-current device
Manufacturer no.
2CSF304131R1630
Release date
24.10.2022

Colour

Colour
Multicoloured
Exact colour description
Multicoloured

Circuit Breaker Features

Circuit breaker type
Fault current circuit breaker
Mounting type
Top-hat rail
number of poles
4
Tripping characteristic
A
Rated current
63 A
Rated current
0.03 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
230 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
Italy, Portugal

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
26.2 kg
Climate contribution
CHF 0.62

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
80 mm
Width
125 mm
Height
115 mm
Weight
880 g
